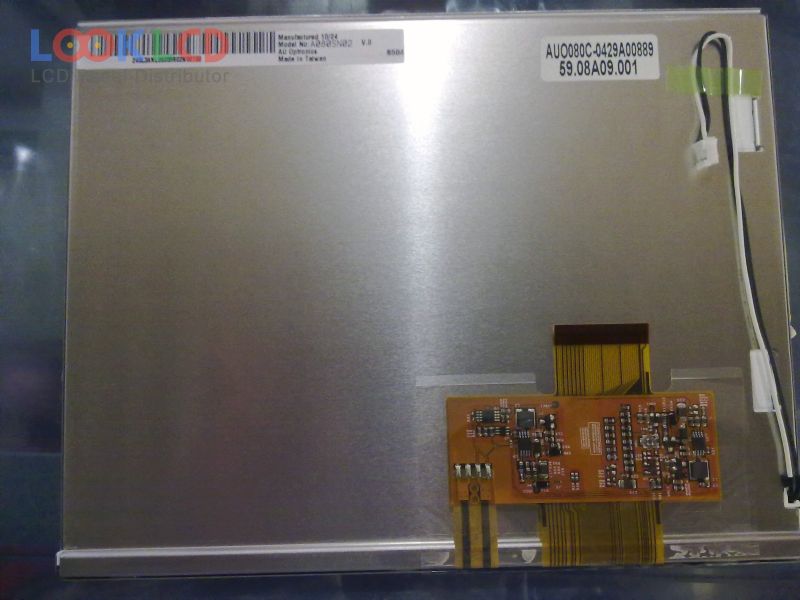

| Varenummer | A080SN02 V0 |
| Mærke | AUO |
| Størrelse | 8.0 |
| Ansøgning | DPF |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A080SN02 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 162×121.5 mm |
| omrids | 179.3×139.2 mm |
| overflade | Antireflection |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | DPF |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| A080SN01 V5 | AUO | 8.0 | 800×600 |
| A080SN01 V8 | AUO | 8.0 | 800×600 |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| PD080SL5 | E Ink | 8.0 | 800×600 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| PM070WX1 | E Ink | 7.0 | 800×480 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
