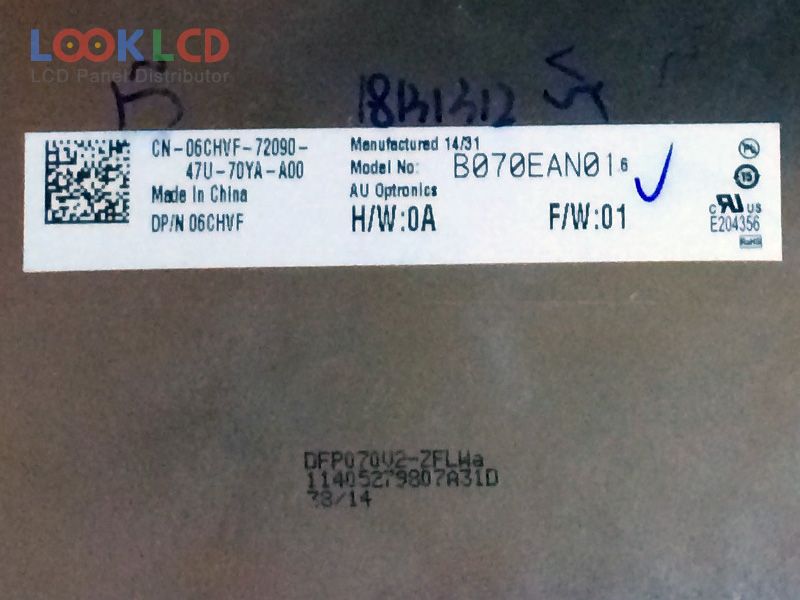

| Varenummer | B070EAN01.6 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | AUO |
| panel model | B070EAN01.6 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 94.2×150.72 mm |
| omrids | 104.32×161.67×4.05 mm |
| overflade | Hard coating |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193160% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5 stringsWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 31 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| AM-1024600-070H | Other | 7.0 | 1024×600 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| B070EAN01.6 | AUO | 7.0 | 800×1280 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
| TX18D11VM1CAA | KOE | 7.0 | 800×480 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
