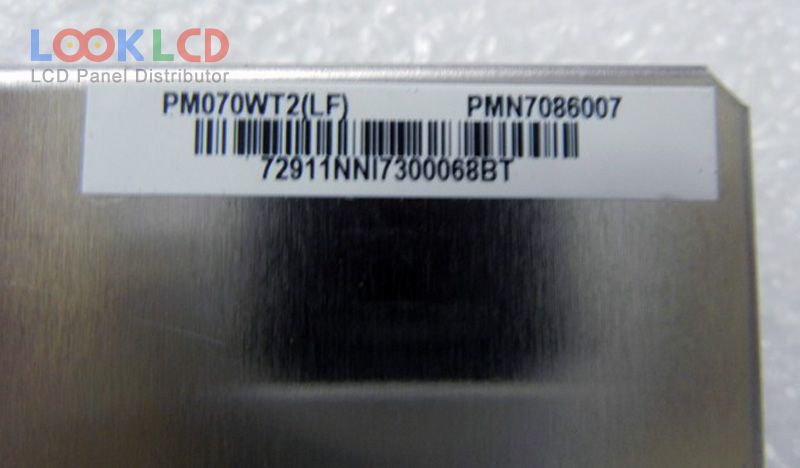

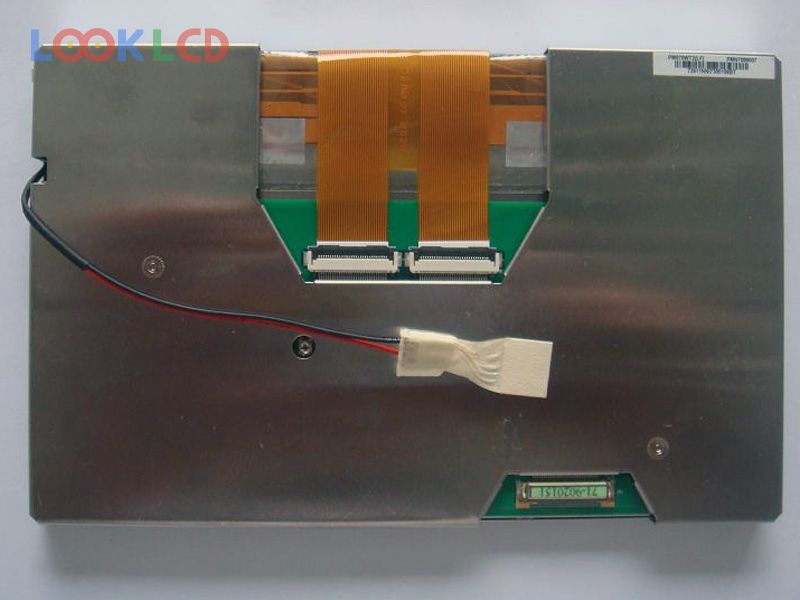

| Varenummer | PM070WT2 |
| Mærke | E Ink |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | PVI |
| panel model | PM070WT2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 166.3×105.3×11 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S11PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| rohs: | |
| Ansøgning | CNS |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| C065GW02 V1 | AUO | 6.5 | 400×234 |
| C065GW03 V3 | AUO | 6.5 | 400×240 |
| C080VW05 V0 | AUO | 8.0 | 800×480 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| L5F30442T15 | Epson | 6.5 | 800×480 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TX18D35VM0AAA | KOE | 7.0 | 800×480 |
