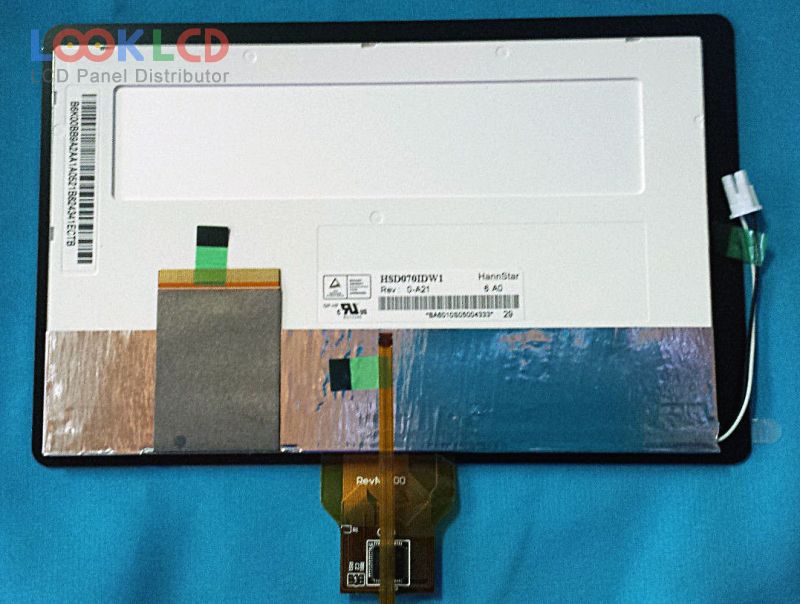

| Varenummer | HSD070IDW1-A21 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HannStar |
| panel model | HSD070IDW1-A21 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×86.64 mm |
| omrids | 165×104×5.4 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC) |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S7PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.0/10.0/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | DPF |
