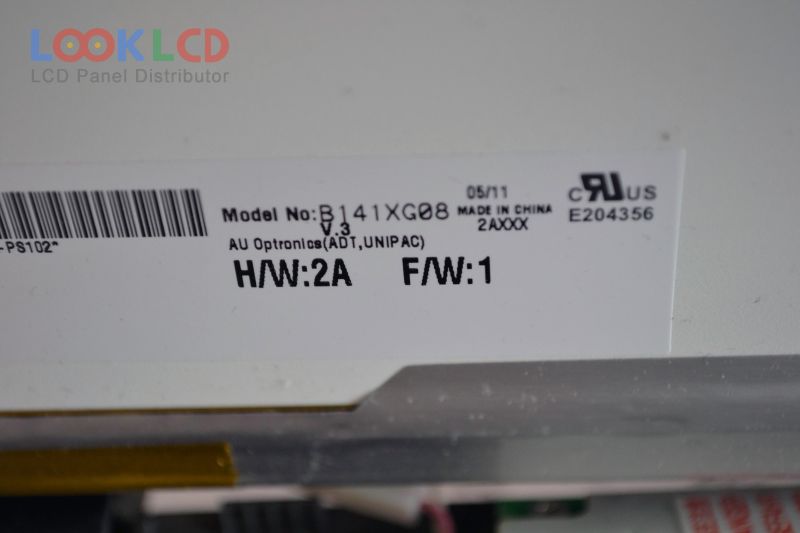

| Varenummer | B141XG08 V3 |
| Mærke | AUO |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B141XG08 V3 8 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 285.696×214.272 mm |
| omrids | 299×228×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B141XG08 V2 | AUO | 14.1 | 1024×768 |
| B141XG08 V3 | AUO | 14.1 | 1024×768 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| B141XG09 V3 | AUO | 14.1 | 1024×768 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| B141XG14 V1 | AUO | 14.1 | 1024×768 |
| B141XN01 V0 | AUO | 14.1 | 1024×768 |
| B141XN03 V0 | AUO | 14.1 | 1024×768 |
| B141XN04 V2 | AUO | 14.1 | 1024×768 |
| B154EW02 V2 | AUO | 15.4 | 1280×800 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP171WP6-TL04 | LG Display | 17.1 | 1440×900 |
| LTN133AT14-001 | Samsung | 13.3 | 1280×800 |
| LTN140KT04-201 | Samsung | 14.0 | 1600×900 |
| LTN154BT05-D01 | Samsung | 15.4 | 1440×900 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N140FGE-LA2 | Innolux | 14.0 | 1600×900 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| TM121XG-02L01 | SANYO | 12.1 | 1024×768 |
