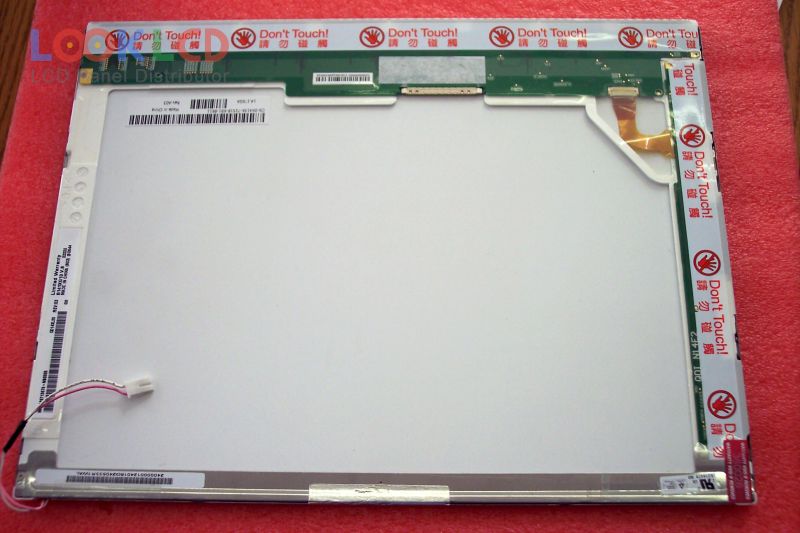

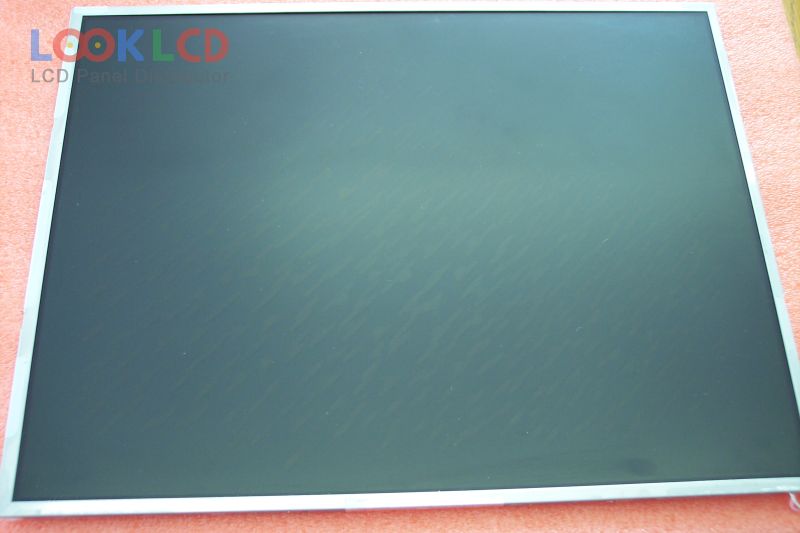

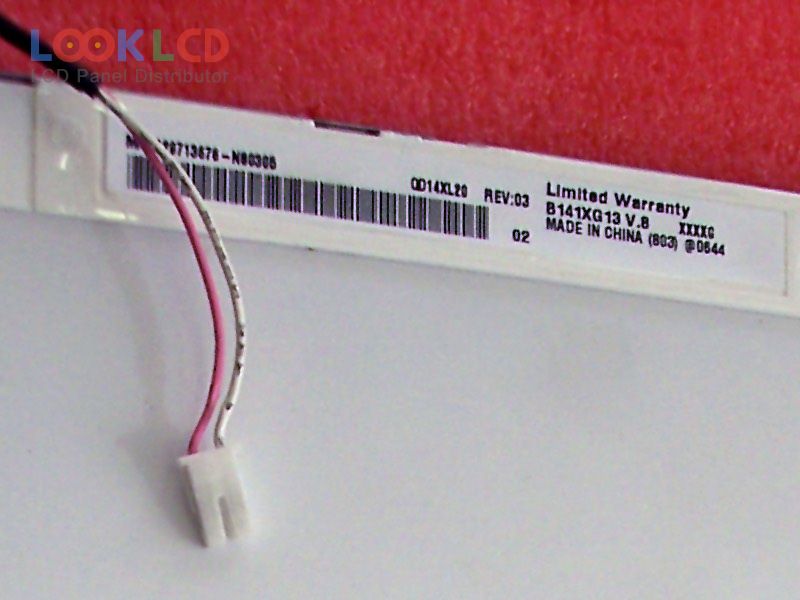

| Varenummer | B141XG13 V8 |
| Mærke | AUO |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 185 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B141XG13 V8 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 285.696×214.272 mm |
| omrids | 299×228×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H), Reflection 5.0% (Max.) |
| lysstyrke | 185 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit), CIE193142% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B141XG08 V2 | AUO | 14.1 | 1024×768 |
| B141XG08 V3 | AUO | 14.1 | 1024×768 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| B141XG09 V3 | AUO | 14.1 | 1024×768 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| B141XG13 V8 | AUO | 14.1 | 1024×768 |
| B141XG14 V1 | AUO | 14.1 | 1024×768 |
| B141XN01 V0 | AUO | 14.1 | 1024×768 |
| B141XN04 V2 | AUO | 14.1 | 1024×768 |
| B140EW01 V1 | AUO | 14.0 | 1280×768 |
| B140XTN03.4 | AUO | 14.0 | 1366×768 |
| HN116WX1-203 | BOE | 11.6 | 1366×768 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LTN121W4-L01 | Samsung | 12.1 | 1280×800 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| LTN170BT05-G01 | Samsung | 17.0 | 1440×900 |
| N173HGE-L11 | Innolux | 17.3 | 1920×1080 |
| NV125QUM-N81 | BOE | 12.5 | 3840×2160 |
| UB141X01 | UNIPAC | 14.1 | 1024×768 |
