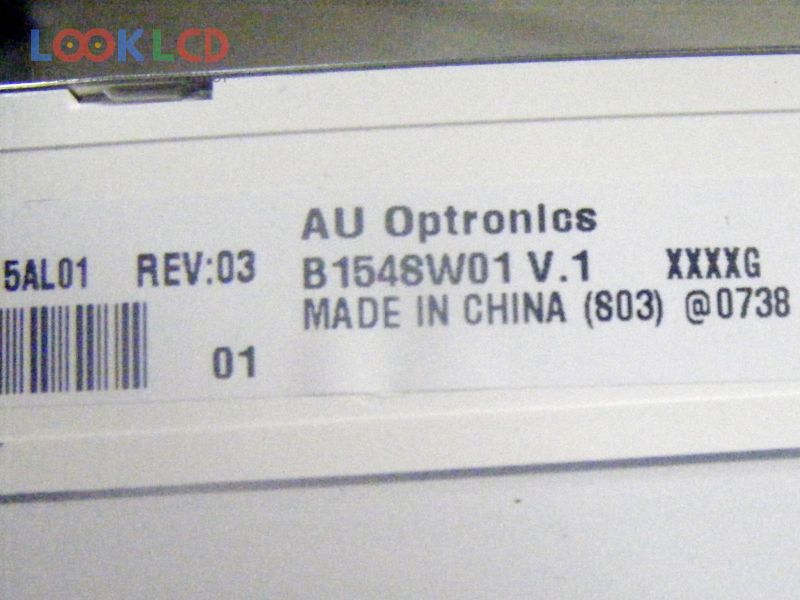

| Varenummer | B154SW01 V1 |
| Mærke | AUO |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1680×1050 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B154SW01 V1 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1680(RGB)×1050 , WSXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.38×207.11 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 6/10 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B154EW09 V2 | AUO | 15.4 | 1280×800 |
| B154SW01 V0 | AUO | 15.4 | 1680×1050 |
| B154SW01 V1 | AUO | 15.4 | 1680×1050 |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| B154SW01 V9 | AUO | 15.4 | 1680×1050 |
| B154SW01 VB | AUO | 15.4 | 1680×1050 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| LP154WE2-TLA8 | LG Display | 15.4 | 1680×1050 |
| LP154WP2-TLC2 | LG Display | 15.4 | 1440×900 |
| B121EW03 V6 | AUO | 12.1 | 1280×800 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLD2 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LP150X09-B5K8 | LG Display | 15.0 | 1024×768 |
| LQ164M1LD4CV | SHARP | 16.4 | 1920×1080 |
| LTN141X8-L00 | Samsung | 14.1 | 1024×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| N101BGE-L31 | Innolux | 10.1 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
