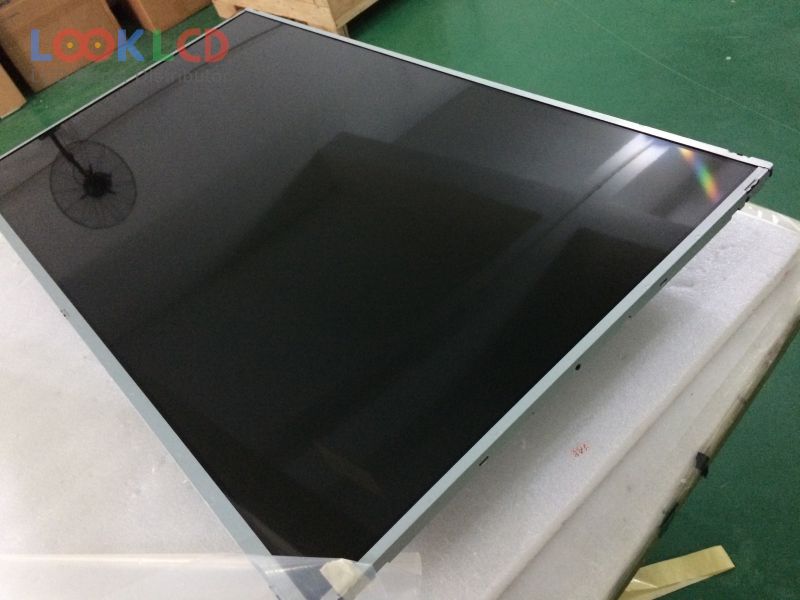

| Varenummer | BRS420H2 |
| Mærke | |
| Størrelse | 42 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 1500 |
| CR | 1200:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | BERISE |
| panel model | BRS420H2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 42 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 927.94×521.94 mm |
| omrids | 955.8×554.4 mm |
| overflade | Antiglare (Haze 1%), Hard coating (3H) |
| lysstyrke | 1500 cd/m² (Typ.) |
| kontrastforhold | 1200:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193171% |
| responstid | 6 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
| BRS420H2 | 42 | 1920×1080 | |
| LC420DUJ-SGE1 | LG Display | 42 | 1920×1080 |
| LC420DUN-SEU3 | LG Display | 42 | 1920×1080 |
| LC420EUD-FFF1 | LG Display | 42 | 1920×1080 |
| LC420EUN-SFF2 | LG Display | 42 | 1920×1080 |
| LC420EUN-SFM1 | LG Display | 42 | 1920×1080 |
| LC420WUN-SBD2 | LG Display | 42 | 1920×1080 |
| LD420WUB-SCA1 | LG Display | 42 | 1920×1080 |
| V420H1-LE1 | Innolux | 42 | 1920×1080 |
| V420H2-L02 | Innolux | 42 | 1920×1080 |
| LTI220MT02 | Samsung | 22.0 | 1680×1050 |
| LTI290LN02 | Samsung | 29.0 | 1920×540 |
| LTI370LN03 | Samsung | 37 | 1920×540 |
| LTI430LA01 | Samsung | 43 | 1920×480 |
| LTI700HD03 | Samsung | 70 | 1920×1080 |
| P546HW01 V0 | AUO | 55 | 1920×1080 |
| P650HVN02.2 | AUO | 65 | 1920×1080 |
| P650HVN02.6 | AUO | 65 | 1920×1080 |
| RX366HDL-C07 | ROGIN | 36.6 | 1920×290 |
| RX430HD02-DC15 | ROGIN | 43 | 1920×1080 |
