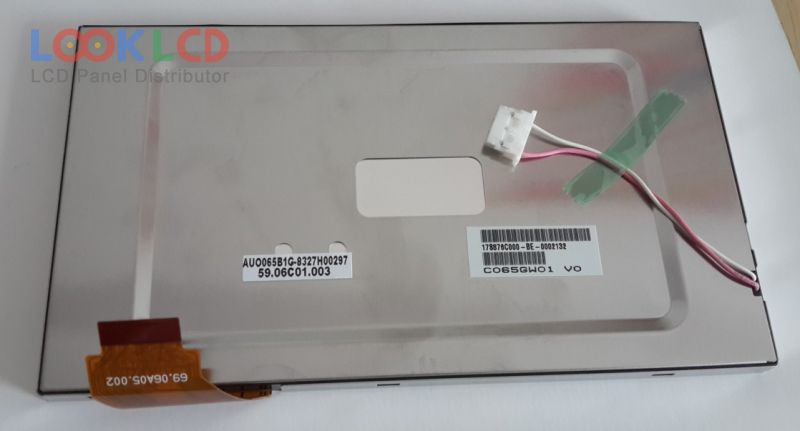

| Varenummer | C065GW01 V0 |
| Mærke | AUO |
| Størrelse | 6.5 |
| Ansøgning | CNS |
| Løsning | 400×234 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 300:1 |
| Farver | Full color |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | AUO |
| panel model | C065GW01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.5 inch |
| løsning | 400(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 143.4×79.326 mm |
| omrids | 157×89.8 mm |
| overflade | Antiglare (Haze 25%) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | Full color |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 30 pins |
| indgangsspænding | 5/5/15-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Ansøgning | CNS |
