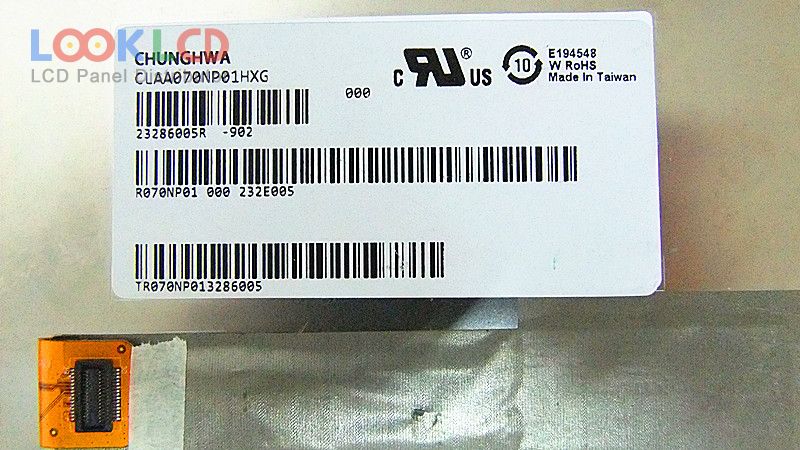

| Varenummer | CLAA070NP01HXG |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA070NP01HXG |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 163.6×102.9 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| responstid | 50 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S4PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit) + SPI, 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | MP4 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LC0ECT | CPT | 7.0 | 800×480 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| LB040Q03-TD01 | LG Display | 4.0 | 320×240 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
