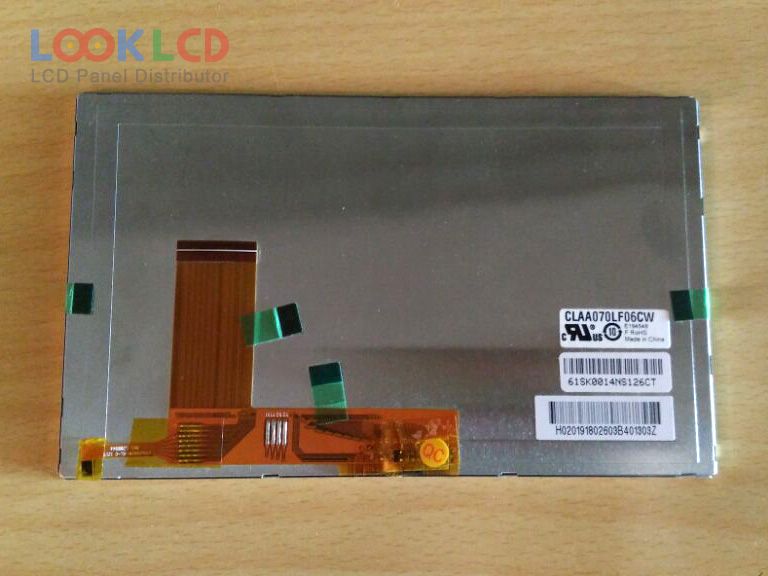

| Varenummer | CLAA070LF06CW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 400:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA070LF06CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×85.92 mm |
| omrids | 164.9×100×4.52 mm |
| overflade | Antiglare |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S3PWLEDWithout Driver |
| signal interface | TTL (1 ch, 8-bit), 67 pins |
| indgangsspænding | 3.3/9.6/18.0/-6 (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
