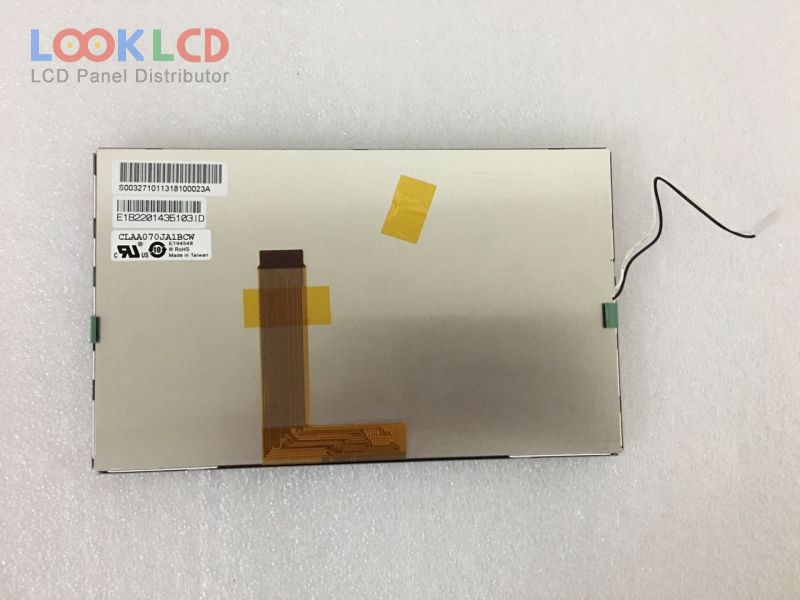

| Varenummer | CLAA070JA1BCW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 400:1 |
| Farver | Full color |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | CPT |
| panel model | CLAA070JA1BCW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×86.58 mm |
| omrids | 164.9×100×6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | Full color |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| indgangsspænding | 5.0/5.0/18.0/-6.0V (Typ.)(VDD/VCC/VGH/VGL) |
| Ansøgning | CNS |
