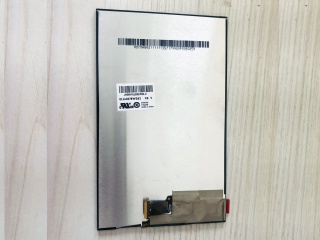

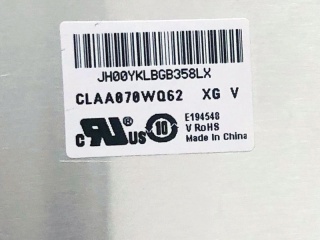

| Varenummer | CLAA070WQ62 XG |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | Pad & Tablet |
| Løsning | 800×1280 |
| Sammensætning | a-Si TFT-LCD , LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| mærke | CPT |
| diagonal størrelse | 7.0 inch |
| pixel format | 800(RGB)×1280 [WXGA] 215PPI |
| aktivt område | 94.2(H)×150.72(V) mm |
| bezel område | - |
| luminans | 350 cd/m² (Typ.) |
| visningsretning | Symmetry |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| støtte farve | 16.7M 70% NTSC |
| vægt | - |
| billedhastighed | 60Hz |
| interface type | MIPI (4 data lanes) , 39 pins FPC |
| Strømforsyning | 1.8/3.3/15/-10V (Typ.)(VDDI/VCI/VGH/VGL) |
| miljø | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | CLAA070WQ62 XG |
| type | a-Si TFT-LCD , LCM |
| konfiguration | RGB Vertical Stripe |
| omrids dim. | 99.6(H)×161.62(V) ×4.05(D) mm |
| behandling | Hard coating |
| kontrastforhold | 800:1 (Typ.) (TM) |
| responstid | 30 (Typ.)(Tr+Td) |
| driftstilstand | FFS, Normally Black, Transmissive |
| lyskilde | WLED [3S6P] , 15K hours , W/O Driver |
| designet til | Pad & Tablet |
| berøringspanel | On-Cell Touch |
