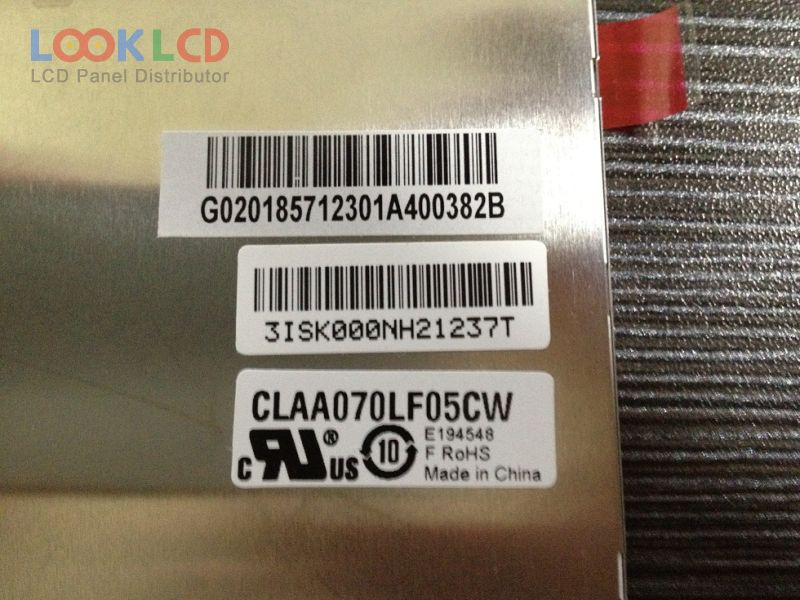

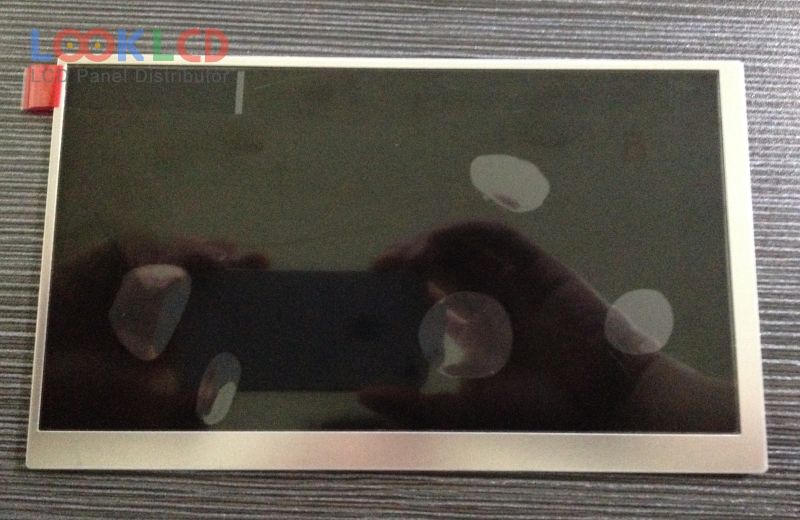

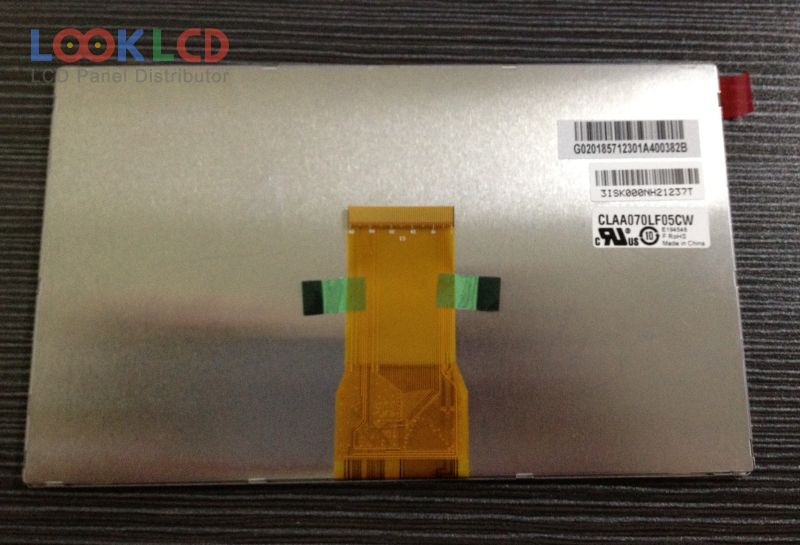

| Varenummer | CLAA070LF05CW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 400:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA070LF05CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×85.92 mm |
| omrids | 164.9×100×3.7 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | TTL (1 ch, 8-bit), 50 pins |
| indgangsspænding | 3.3/9.6/18.0/-6 (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| CLAA070LC0ACW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ038Q5DR01 | SHARP | 3.8 | 320×240 |
| LQ058T5BA01 | SHARP | 5.8 | |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| M101GWT9 R3 | IVO | 10.1 | 1024×600 |
