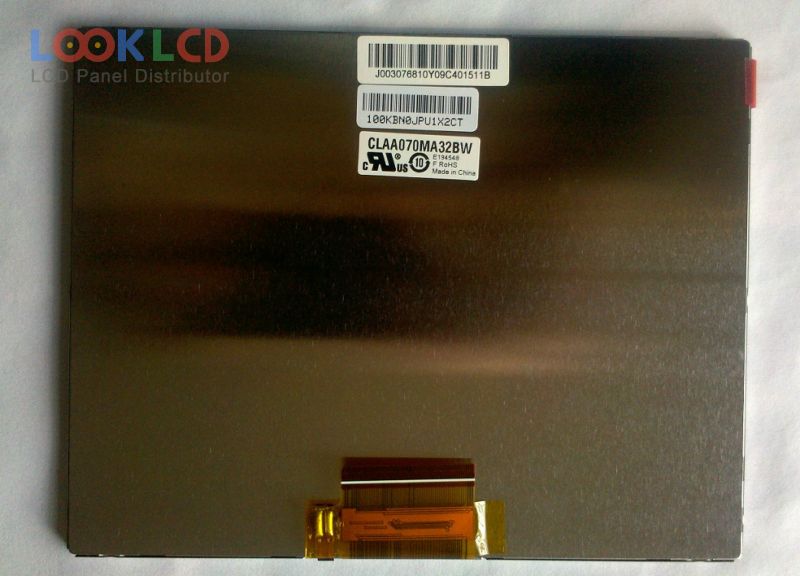

| Varenummer | CLAA070MA32BW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | EBK |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 150 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA070MA32BW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, TMR |
| aktivt område | 141.6×106.2 mm |
| omrids | 156.4×122.25×3.5 mm |
| overflade | Antiglare |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 500 : 1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193120% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 50/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2S7PWLEDWithout Driver |
| signal interface | TTL (1 ch, 8-bit), 60 pins |
| indgangsspænding | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | EBK |
