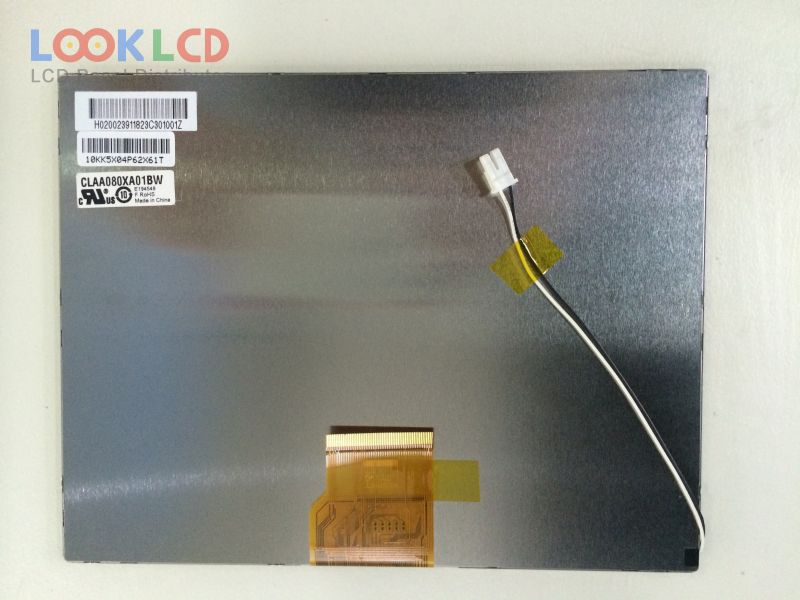

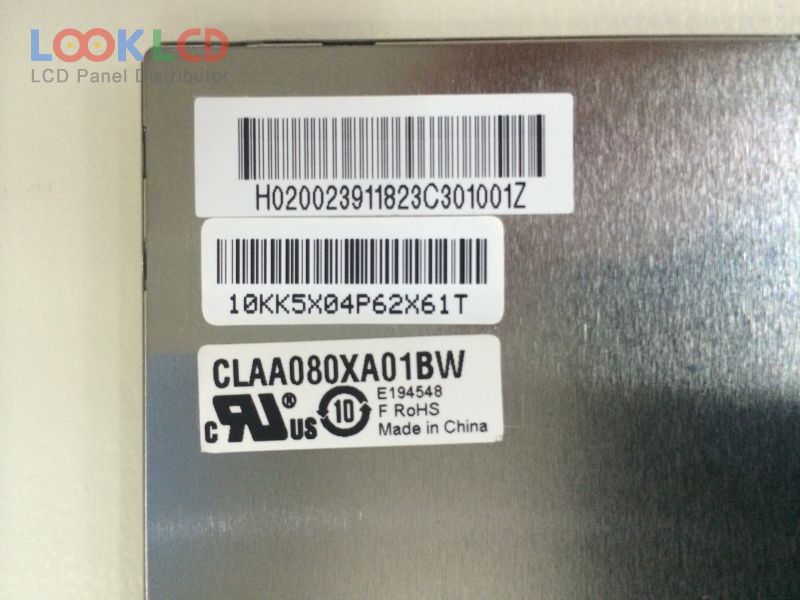

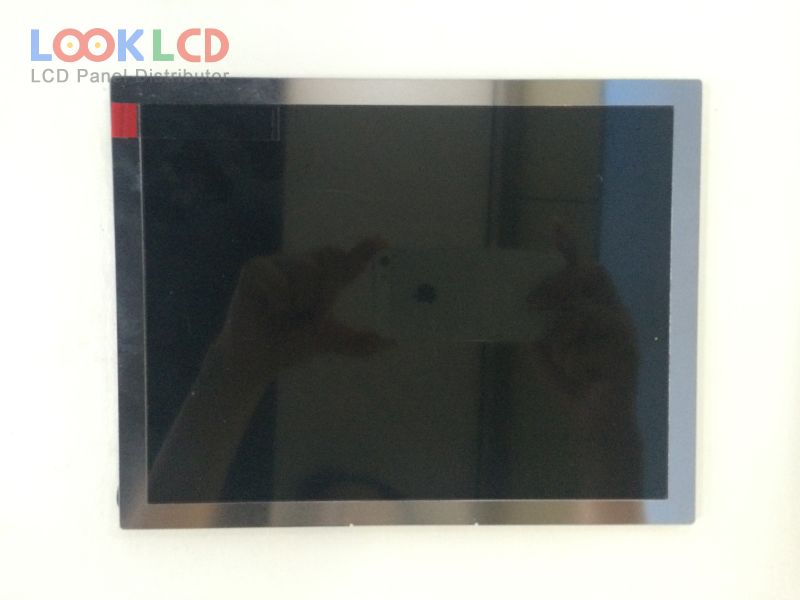

| Varenummer | CLAA080XA01BW |
| Mærke | CPT |
| Størrelse | 8.0 |
| Ansøgning | DPF |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA080XA01BW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 162.048×121.536 mm |
| omrids | 183×141×3.7 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S7PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | DPF |
