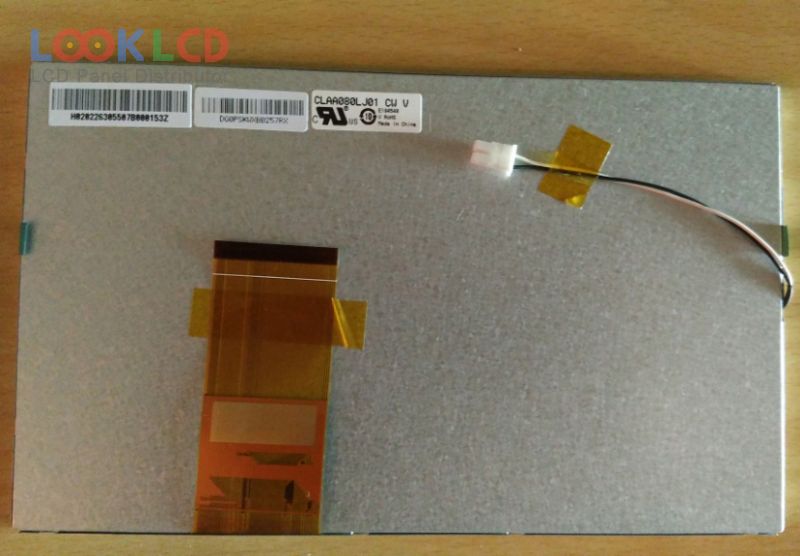

| Varenummer | CLAA080LJ01CW |
| Mærke | CPT |
| Størrelse | 8.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 500:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA080LJ01CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 176.64×99.36 mm |
| omrids | 192.8×116.9×7 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S10PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VDDG/VEEG) |
| Ansøgning | CNS |
