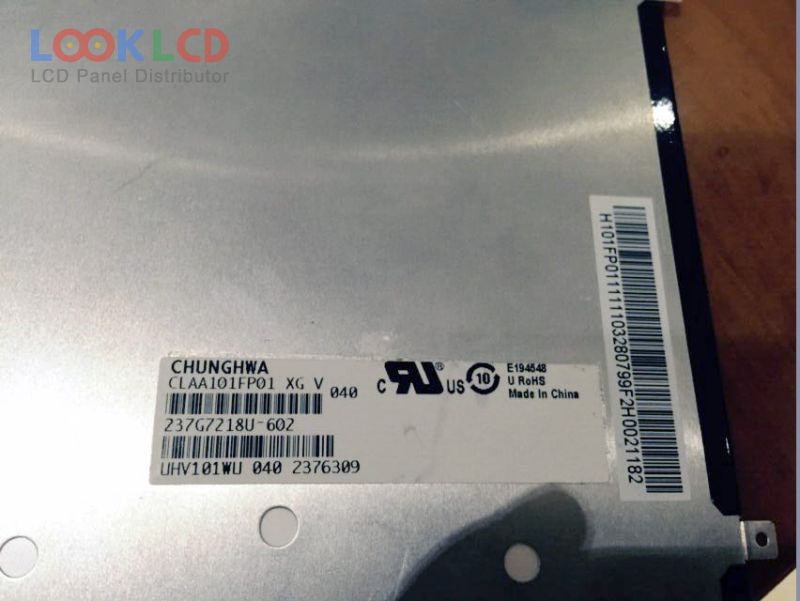

| Varenummer | CLAA101FP01 XG |
| Mærke | CPT |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 700 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | CPT |
| panel model | CLAA101FP01 XG |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 216.576×135.36 mm |
| omrids | 229×153×4.8 mm |
| overflade | Glare (Haze 0%), Hard coating, Antireflection |
| lysstyrke | 700 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | MIPI (4 data lanes), 45 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
