| Varenummer | COM104T9M10ERS |
| Mærke | Ortustech |
| Størrelse | 10.4 |
| Ansøgning | Industrial |
| Løsning | 800×600 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | Ortustech |
| model | COM104T9M10ERS |
| diagonal størrelse | 10.4 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×600 [SVGA] 96PPI |
| konfiguration | RGB Vertical Stripe |

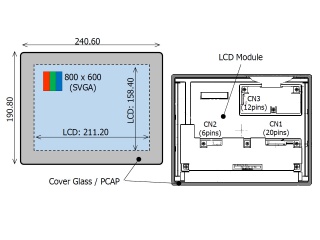

| aktivt område | 211.2(H)×158.4(V) mm |
| omrids dim. | 240(H)×190.8(V) mm |
| luminans | 480 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 40 (Max.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Min.)(CR≥10) |
| driftstilstand | FFS, Normally Black, Transmissive |
| støtte farve | 262K/16.7M 50% NTSC |
| lyskilde | WLED , 70K hours , With LED Driver |
| vægt | - |
| designet til | Industrial |
| billedhastighed | 60Hz |
| berøringspanel | PCAP |
| interface type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
