| Varenummer | COM121T9M14CSS |
| Mærke | Ortustech |
| Størrelse | 12.1 |
| Ansøgning | Industrial |
| Løsning | 800×600 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | Ortustech |
| model | COM121T9M14CSS |
| diagonal størrelse | 12.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×600 [SVGA] 82PPI |
| konfiguration | RGB Vertical Stripe |

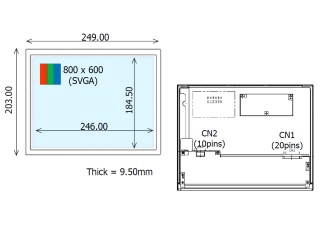

| aktivt område | 246(H)×184.5(V) mm |
| omrids dim. | 260.5(H)×203(V) ×10(D) mm |
| luminans | 600 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 40 (Max.)(Tr+Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10) |
| driftstilstand | FFS, Normally Black, Transmissive |
| støtte farve | 262K/16.7M 48% NTSC |
| lyskilde | WLED , 70K hours , With LED Driver |
| vægt | 500g (Typ.) |
| designet til | Industrial |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA121TH11-DE1 | Mitsubishi | 12.1 | 1280×800 |
| AA121XL01 | Mitsubishi | 12.1 | 1024×768 |
| B121EW13 V1 | AUO | 12.1 | 1280×800 |
| G121STN01.0 | AUO | 12.1 | 800×600 |
| HT121WX2-210 | HYDIS | 12.1 | 1280×800 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| LTN121AT04-001 | Samsung | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| TX31D32VM2AAA | KOE | 12.1 | 800×600 |
