| Varenummer | COM35H3P58ULC |
| Mærke | Ortustech |
| Størrelse | 3.5 |
| Ansøgning | Handheld & PDA |
| Løsning | 320×240 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 700:12:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel |
| mærke | Ortustech |
| model | COM35H3P58ULC |
| diagonal størrelse | 3.5 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 320(RGB)×240 [QVGA] 115PPI |
| konfiguration | RGB Vertical Stripe |

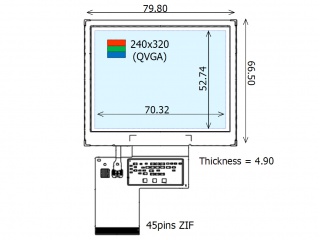

| aktivt område | 70.32(H)×52.74(V) mm |
| omrids dim. | 79.8(H)×66.5(V) ×5.1(D) mm |
| bezel område | - |
| behandling | Hard coating (2H) |
| luminans | 600 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| visningsretning | Symmetry |
| responstid | 60/40 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10) |
| driftstilstand | VA, Normally Black, Transflective |
| støtte farve | 16.7M 50% NTSC |
| lyskilde | WLED [3S2P] , 50K hours , W/O Driver |
| vægt | TBD |
| designet til | Handheld & PDA |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
