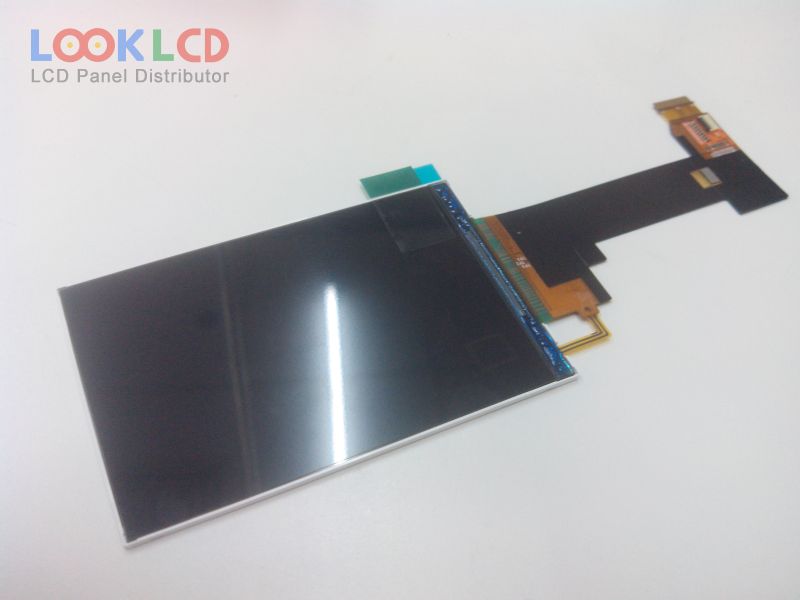

| Varenummer | H347QVN02.0 |
| Mærke | AUO |
| Størrelse | 3.5 |
| Ansøgning | MPH |
| Løsning | 320×480 |
| Sammensætning | LCM |
| Lysstyrke | 430 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | AUO |
| panel model | H347QVN02.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×480 , HVGA |
| visningstilstand | VA, Normally Black, Transmissive |
| aktivt område | 48.96×73.44 mm |
| omrids | 53.16×81.62×1.55 mm |
| overflade | Hard coating |
| lysstyrke | 430 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | MIPI (1 data lane), 35 pins |
| indgangsspænding | 2.8V (Typ.)(VCI) |
| Ansøgning | MPH |
