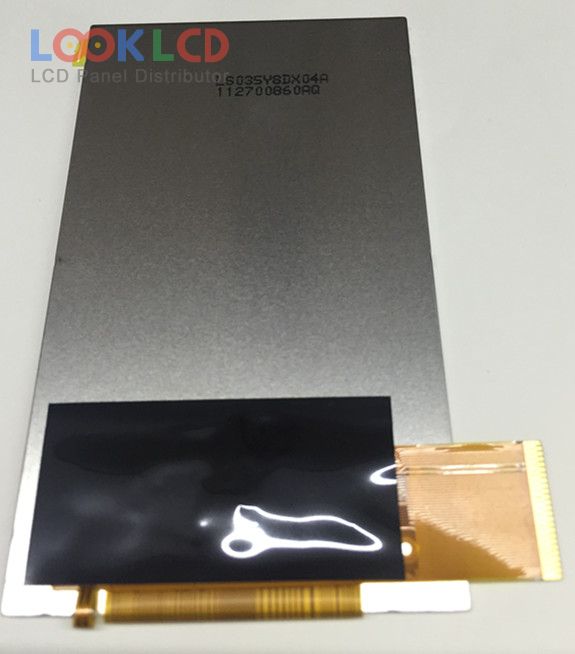

| Varenummer | LS035Y8DX04A |
| Mærke | SHARP |
| Størrelse | 3.5 |
| Ansøgning | MPH |
| Løsning | 480×800 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LS035Y8DX04A 1 Compatible model |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 480(RGB)×800 , WVGA |
| visningstilstand | ASV, Normally Black, Transflective |
| aktivt område | 45.36×75.6 mm |
| omrids | 51.16×87.47×3.04 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 11/24 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 49 pins |
| indgangsspænding | 1.8/2.8V (Typ.)(VDDIO/VCC) |
| Ansøgning | MPH |
| C0283QGLD-T | CMEL | 2.8 | 240×320 |
| CLAF050LG41 TXX | CPT | 5.0 | 540×960 |
| CM520F1-001 | CSOT | 5.2 | 1080×1920 |
| GCX141AKM-E | SONY | 3.2 | 240×400 |
| H020HD01 V0 | AUO | 2.0 | 176×220 |
| LH240Q29-SH04 | LG Display | 2.4 | 240×320 |
| LH350WV2-SH02 | LG Display | 3.5 | 480×800 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| OEL9M0039-Y-E | Other | 1.5 | 128×128 |
| TX11D101VM0EAA | KOE | 4.3 | 480×800 |
