| Varenummer | COM43H4N66ULC |
| Mærke | Ortustech |
| Størrelse | 4.3 |
| Ansøgning | Handheld & PDA |
| Løsning | 480×800 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 600:13:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| mærke | Ortustech |
| model | COM43H4N66ULC 1 Compatible |
| diagonal størrelse | 4.3 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 480(RGB)×800 [WVGA] 218PPI |
| konfiguration | RGB Vertical Stripe |

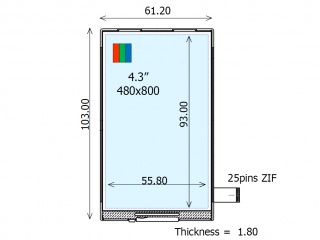

| aktivt område | 55.8(H)×93(V) mm |
| omrids dim. | 61.2(H)×103(V) ×2.95(D) mm |
| bezel område | - |
| behandling | Hard coating (2H) |
| luminans | 300 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| visningsretning | Symmetry |
| responstid | 40/60 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10) |
| driftstilstand | VA, Normally Black, Transflective |
| støtte farve | 16.7M 50% NTSC |
| lyskilde | WLED [7S1P] , 20K hours , W/O Driver |
| vægt | 25.2g (Typ.) |
| designet til | Handheld & PDA |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | MIPI (2 data lanes) , 25 pins FPC |
| Strømforsyning | 3.3/1.8V (Typ.)(VDD/VCCIO) |
| miljø | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
