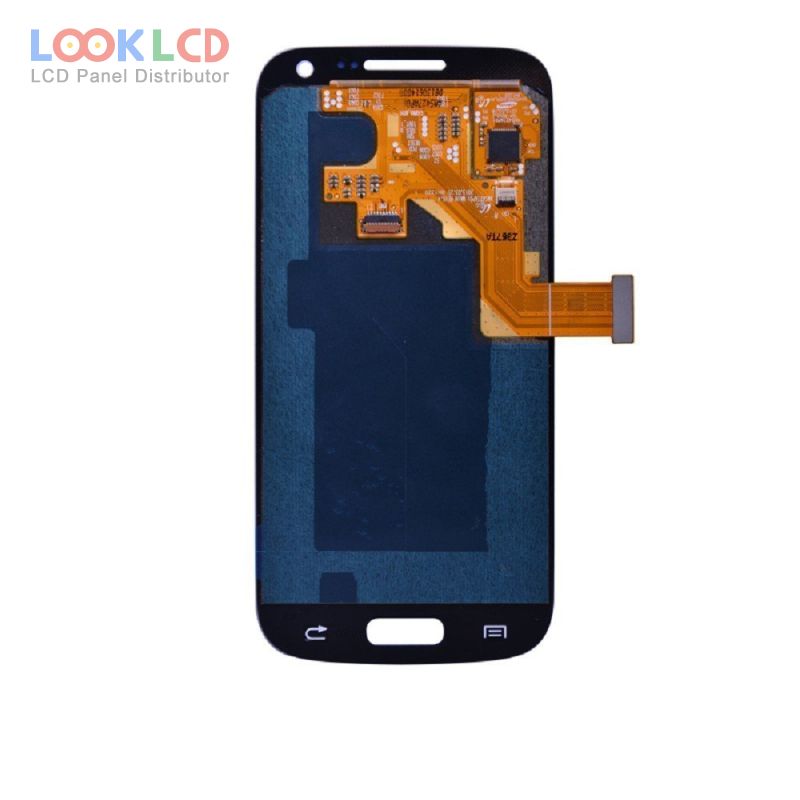

| Varenummer | AMS427GL45-0 |
| Mærke | Samsung |
| Størrelse | 4.3 |
| Ansøgning | MPH |
| Løsning | 480×800 |
| Sammensætning | Assembly |
| Lysstyrke | 300 |
| CR | 10000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | self |
| Interface | TTL |
| panel mærke | SAMSUNG SMD |
| panel model | AMS427GL45-0 |
| paneltype | AM-OLED , Assembly |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×800 , WVGA |
| aktivt område | 55.8×93 mm |
| omrids | 62.68×121.93 mm |
| overflade | Hard coating |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Min.) |
| vise farver | 16.7M (8-bit), CIE1931106% |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| indgangsspænding | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| Ansøgning | MPH |
| AMS427GL34-1 | Samsung | 4.3 | 480×800 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| G043FW01 V0 | AUO | 4.3 | 480×272 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
| BTL507212-W677L | BOE | 5.0 | 720×1280 |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| GCX141AKM-E | SONY | 3.2 | 240×400 |
| H381DLN01.0 | AUO | 3.8 | 1080×1200 |
| HVA37WV1-D01 | HYDIS | 3.7 | 480×800 |
| HVA42WV1-M00 | HYDIS | 4.2 | 480×800 |
| LH500WF1-SD02 | LG Display | 5.0 | 1080×1920 |
| LQ055T3SX04 | SHARP | 5.5 | 1080×1920 |
| LS030Y7PW01 | SHARP | 3.0 |
