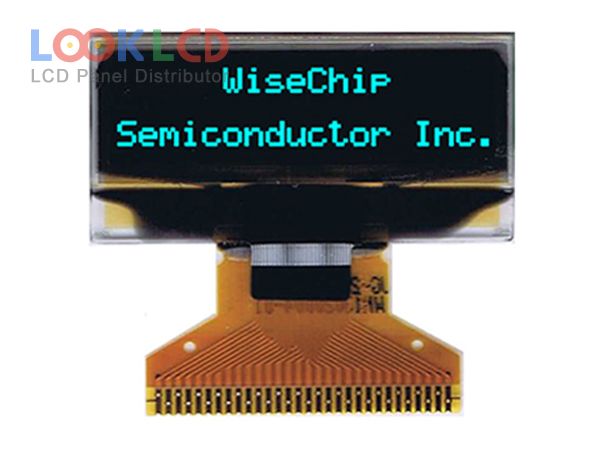

| Varenummer | UG-2832TLBGG01 |
| Mærke | WiseChip |
| Størrelse | 1.0 |
| Ansøgning | IA |
| Løsning | 128×32 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 10000:1 |
| Farver | Mono(Blue) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | WiseChip |
| panel model | UG-2832TLBGG01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.0 inch |
| løsning | 128×32 |
| aktivt område | 25.58×6.38 mm |
| omrids | 29.8×14.5×1.4 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | Mono(Blue) |
| synsvinkel | |
| driver ic | Built-in SSD1306 |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| indgangsspænding | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| Ansøgning | IA |
