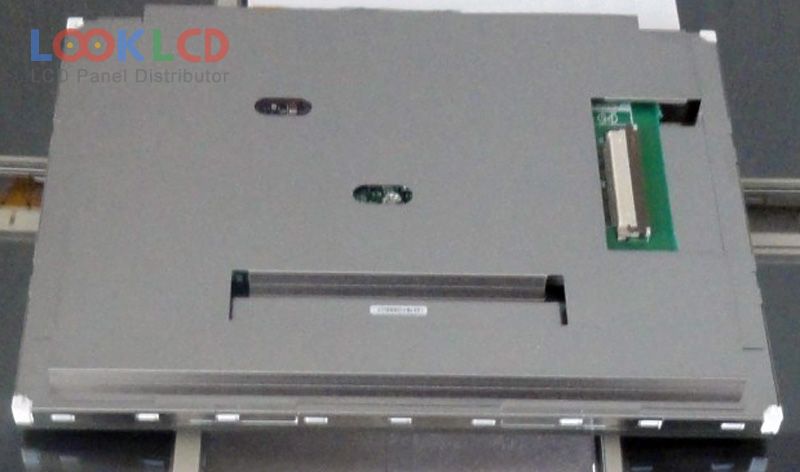

| Varenummer | COM57H5M10XRC |
| Mærke | ORTUSTECH |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 360 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | ORTUSTECH |
| panel model | COM57H5M10XRC |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 115.2×86.4 mm |
| omrids | 130.32×101.2 mm |
| overflade | |
| lysstyrke | 360 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 40/60 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | Parallel RGB (1 ch, 6-bit) |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
