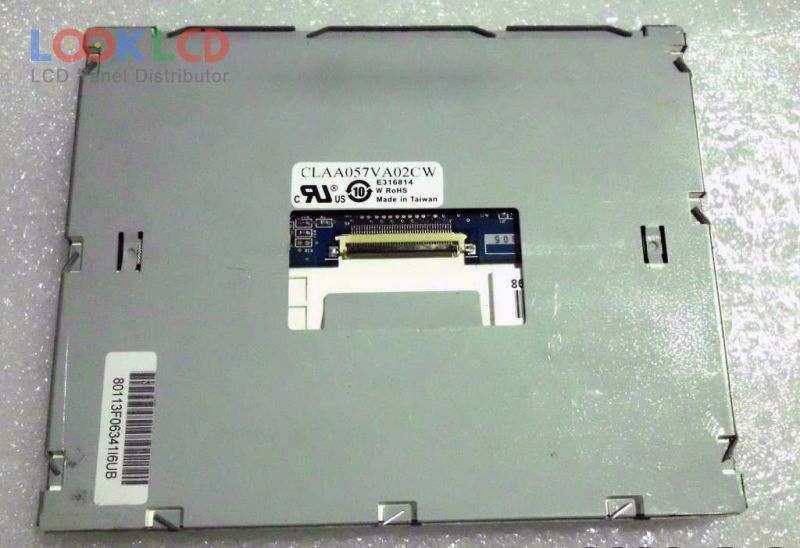

| Varenummer | CLAA057VA02CW |
| Mærke | CPT |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA057VA02CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 116.16×87.12 mm |
| omrids | 131.14×104.44×8.35 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| AA057VG12 | Mitsubishi | 5.7 | 640×480 |
| AG-320240A4FIQW-K9H-S(N)(R) | AMPIRE | 5.7 | 320×240 |
| CLAA050JA01CT | CPT | 5.0 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| CLAA057VA01CW | CPT | 5.7 | 640×480 |
| CLAA057VA02CW | CPT | 5.7 | 640×480 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| CLAA057VC01CW | CPT | 5.7 | 640×480 |
| KCS057QV1AJ-G23 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| ET057010DMU | EDT | 5.7 | 640×480 |
| G150XTN01.0 | AUO | 15.0 | 1024×768 |
| G170EG01 V0 | AUO | 17.0 | 1280×1024 |
| G6481L-FF | CITIZEN | 10.4 | 640×480 |
| LM238XB | KOE | 5.9 | 240×128 |
| LQ121S1LG41 | SHARP | 12.1 | 800×600 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| PD057VT3 | E Ink | 5.7 | 640×480 |
| TM100SV-A02-01 | SANYO | 10.0 | 800×600 |
