| Varenummer | DLC0800AIG-2 |
| Mærke | Other |
| Størrelse | 8.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 1000 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | DLC |
| panel model | DLC0800AIG-2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 176.64×99.36 mm |
| omrids | 192.8×116.9×6.7 mm |
| overflade | |
| lysstyrke | 1000 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 65Hz |
| lampe type | WLEDWithout Driver |

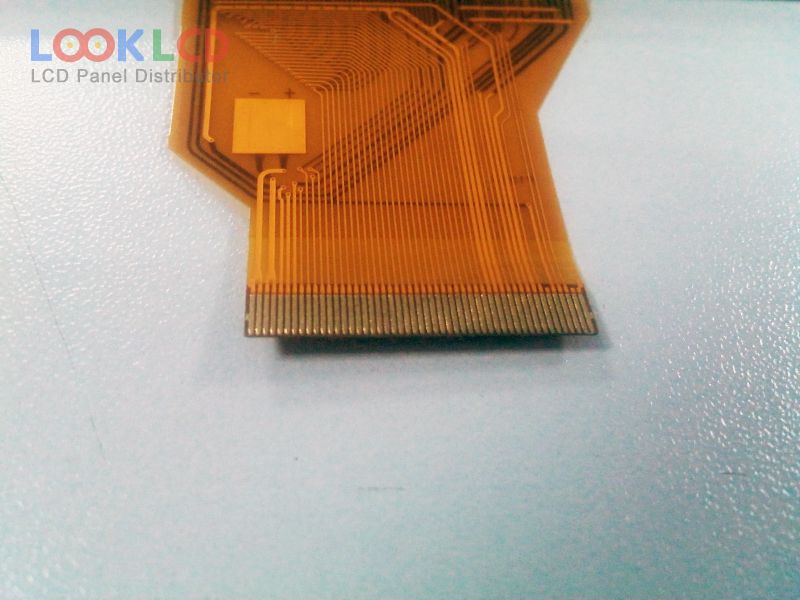

| signal interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| indgangsspænding | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
