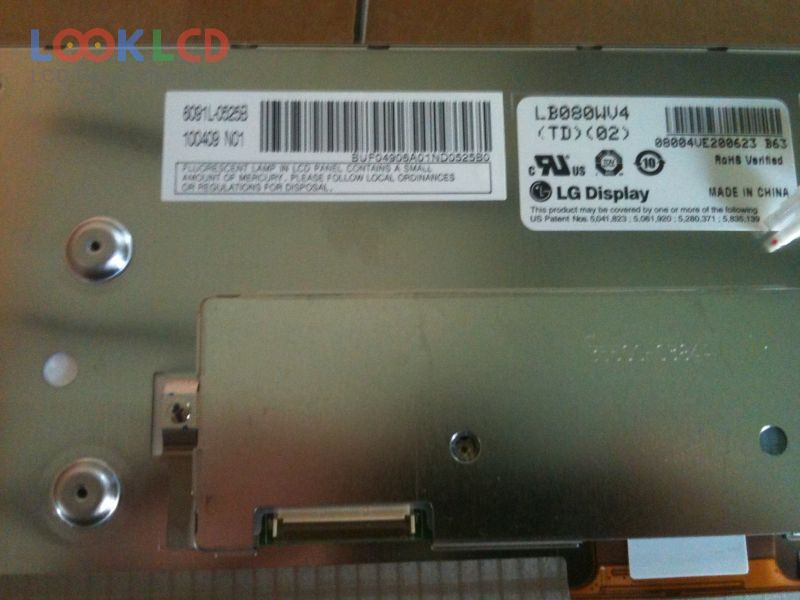

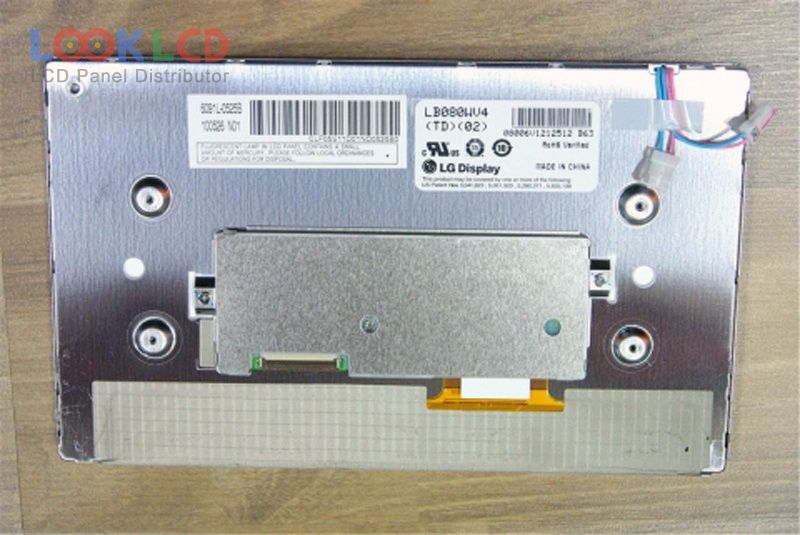

| Varenummer | LB080WV4-TD02 |
| Mærke | LG Display |
| Størrelse | 8.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | LG.Philips LCD |
| panel model | LB080WV4-TD02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 176.64×99.36 mm |
| omrids | 199×121 mm |
| overflade | Antiglare |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | CNS |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| DLC0800BIG-4 | Other | 8.0 | 800×600 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LB080WV4-TA01 | LG Display | 8.0 | 800×480 |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LSL080AL02-002 | Samsung | 8.0 | 800×1280 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| DJ080PA-01C | Innolux | 8.0 | |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LQ5AW136T | SHARP | 5.0 | 320×234 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
