| Varenummer | LA050WQ1-TD01 |
| Mærke | LG Display |
| Størrelse | 5.0 |
| Ansøgning | CNS |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 1100 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | LG Display |

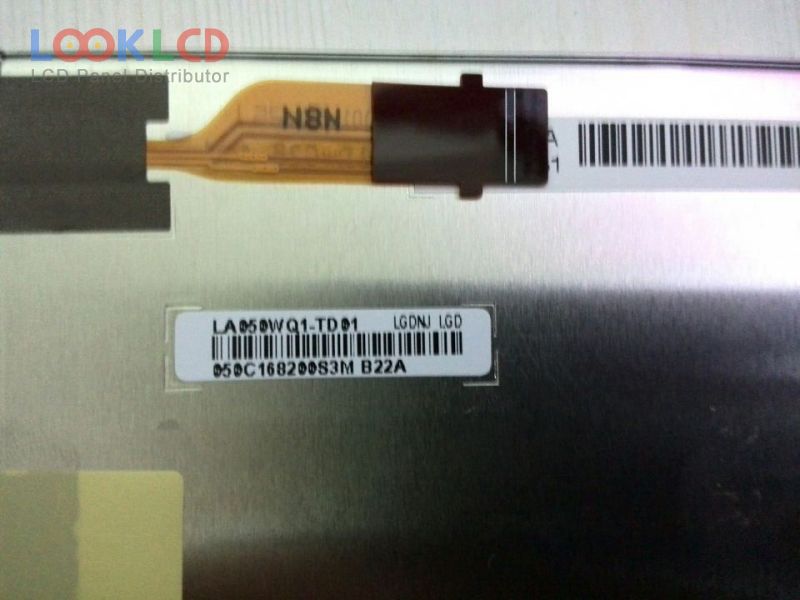

| panel model | LA050WQ1-TD01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 110.88×62.478 mm |
| omrids | 124×75.2×8.3 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 1100 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193175% |
| responstid | 6/9 (Typ.)(Tr/Td) |
| synsvinkel | 55/55/55/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/10.0V (Typ.)(DVDD/AVDD) |
| Ansøgning | CNS |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| COM50H5125XLC | ORTUSTECH | 5.0 | 320×240 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LA050WQ2-SD02 | LG Display | 5.0 | 480×240 |
| LD050WV1-SP01 | LG Display | 5.0 | 480×800 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LQ5AW136 | SHARP | 5.0 | 320×234 |
| LS050T1SX10 | SHARP | 5.0 | 1080×1920 |
| PA050DT2 | E Ink | 5.0 | 320×234 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| LQ058T5DG30 | SHARP | 5.8 | 480×240 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| PA080XS4 | E Ink | 7.9 | 480×468 |
| PD050VX6 | E Ink | 5.0 | 640×480 |
| TX31D16VM2BAA | KOE | 12.2 | 1024×310 |
