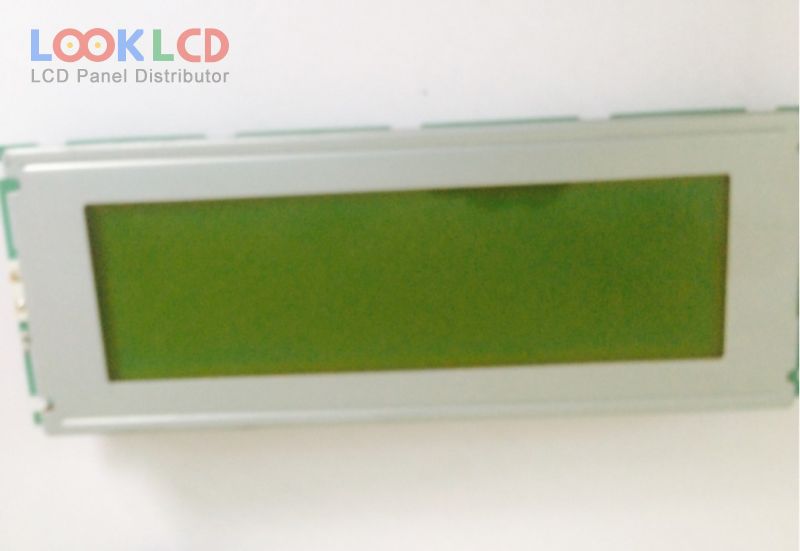

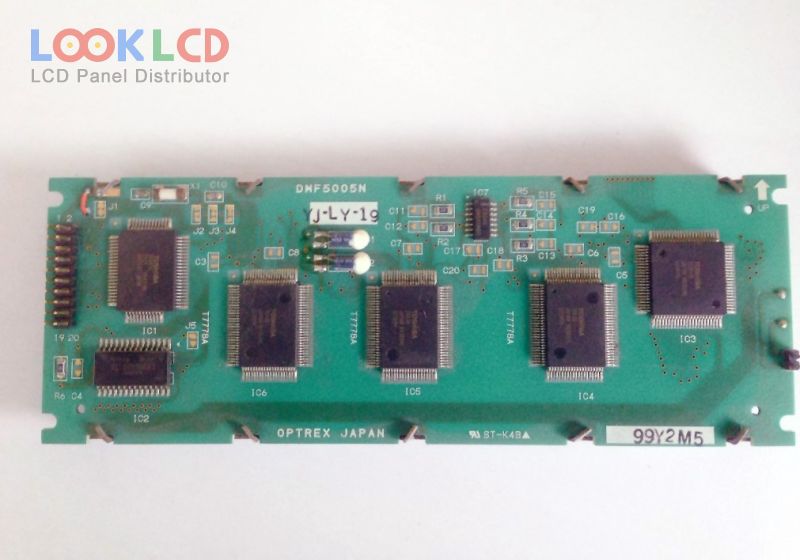

| Varenummer | DMF5005NYJ-LY |
| Mærke | Kyocera |
| Størrelse | 5.2 |
| Ansøgning | IA |
| Løsning | 240×64 |
| Sammensætning | LCM |
| Lysstyrke | 45 |
| CR | 6:1 |
| Farver | Monochrome |
| Baggrundsbelysning | YG-LED |
| Interface | CPU |
| panel mærke | OPTREX |
| panel model | DMF5005NYJ-LY |
| paneltype | STN-LCD , LCM |
| panelstørrelse | 5.2 inch |
| løsning | 240×64 |
| visningstilstand | STN, Yellow/Green (Positive), Transmissive |
| aktivt område | 127.16×33.88 mm |
| omrids | 180×65 mm |
| overflade | |
| lysstyrke | 45 cd/m² (Min.) |
| kontrastforhold | 6:1 (Typ.) |
| vise farver | Monochrome (1-bit) |
| responstid | 75/125 (Typ.)(Tr/Td) |
| synsvinkel | 28/40/30/36 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 70Hz |
| lampe type | YG-LEDWithout Driver |
| signal interface | 8-bit parallel, 22 pins |
| indgangsspænding | 5.0V (Typ.)(VCC) |
| Ansøgning | IA |
| 70WVW5A | SII | 7.0 | 800×480 |
| AA084SC01 | Mitsubishi | 8.4 | 800×600 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| DLC1010DZG-T-8 | Other | 10.1 | 1280×800 |
| G156BGE-L01 | Innolux | 15.6 | 1366×768 |
| LM8M64 | SHARP | 8.1 | 640×240 |
| NL10276BC16-06D | NLT | 8.4 | 1024×768 |
| NL4823BC37-05 | NLT | 7.0 | 480×234 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
