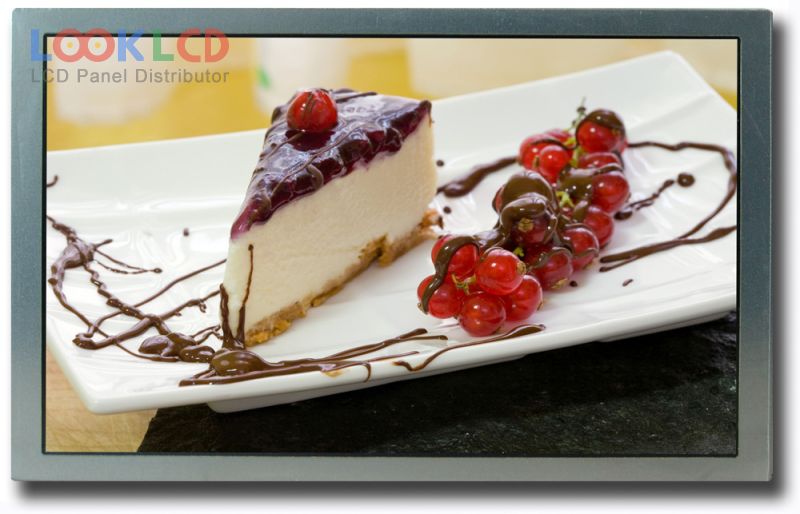

| Varenummer | T-55561D090J-LW-A-AAN |
| Mærke | Kyocera |
| Størrelse | 9.0 |
| Ansøgning | IA |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | OPTREX |
| panel model | T-55561D090J-LW-A-AAN 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 196.8×118.08 mm |
| omrids | 219×136.2 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| responstid | 12/12 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S2PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
