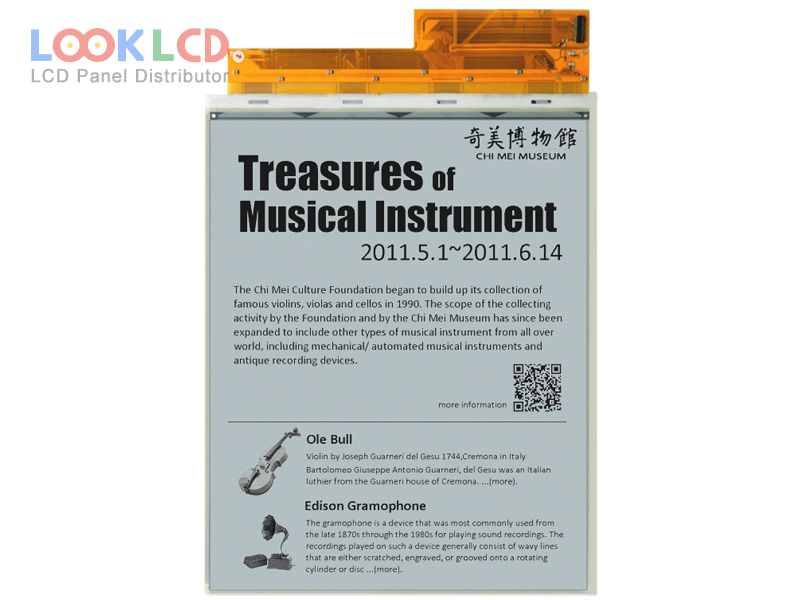

| Varenummer | EZ102AT011 |
| Mærke | PDI |
| Størrelse | 10.2 |
| Ansøgning | |
| Løsning | 1024×1280 |
| Sammensætning | EPD |
| Lysstyrke | |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | No B/L |
| Interface | Parallel Data |
| panel mærke | PDI |
| panel model | EZ102AT011 |
| paneltype | EPD , EPD |
| panelstørrelse | 10.2 inch |
| løsning | 1024×1280 , SXGA |
| aktivt område | 162.56×203.2 mm |
| omrids | 171.76×218.3×1.4 mm |
| overflade | Antiglare |
| lysstyrke | |
| kontrastforhold | 10:1 (Typ.)(Reflective) |
| vise farver | Monochrome (1-bit) |
| synsvinkel | |
| signal interface | Parallel Data (8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| C102EVN01.0 | AUO | 10.2 | 1280×720 |
| CLAA102NA0ACW | CPT | 10.2 | 1024×600 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| EZ102AS181 | PDI | 10.2 | 1024×1280 |
| EZ102AT011 | PDI | 10.2 | 1024×1280 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
| TX26D30VM1AAA | KOE | 10.2 | 800×256 |
| C-51505NFQJ-LW-ALN | Kyocera | 3.0 | 20×2 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| LQ038B3DD01 | SHARP | 3.8 | 320×480 |
| LQ14D311 | SHARP | 13.8 | 640×480 |
| LQ150X1LW71U | SHARP | 15.0 | 1024×768 |
| LTA070B070F | TOSHIBA | 7.0 | 800×480 |
| OEL9M0083-B-E | Other | 0.96 | 128×64 |
| OEL9M5003-B-E | Other | 2.7 | 128×64 |
| OEL9M5003-G-E | Other | 2.7 | 128×64 |
| TY05001C0-40 V1 | Other | 5.0 | 800×480 |
