| Varenummer | G070Y1-T01 |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | CMO |

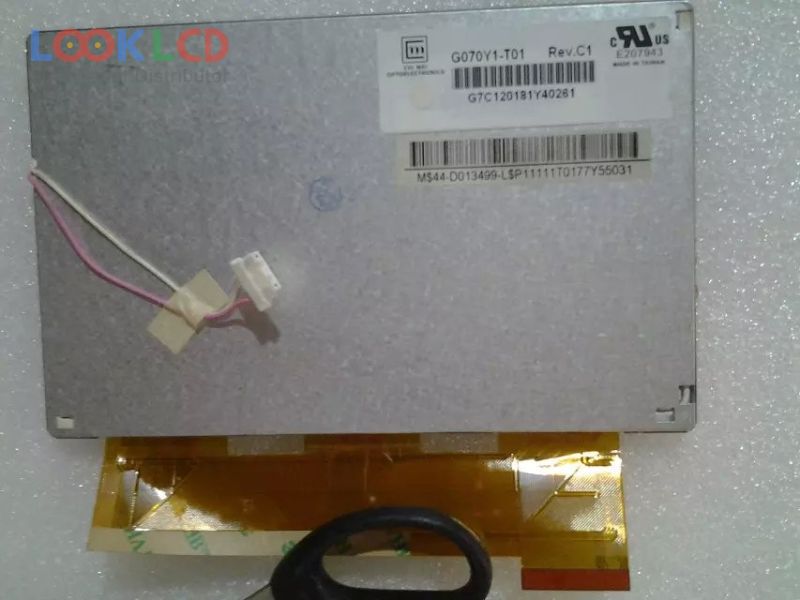

| panel model | G070Y1-T01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×104×5.8 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/11.6/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Ansøgning | CNS |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| G070Y1-T01 | Innolux | 7.0 | 800×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| G070Y3-T01 | Innolux | 7.0 | 800×480 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| C070VAN01.1 | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| LTA061B2E0F | TOSHIBA | 6.1 | |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| TFD65W46 | TOSHIBA | 6.5 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| YX070DK02 | SEBO | 7.0 | 800×480 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
