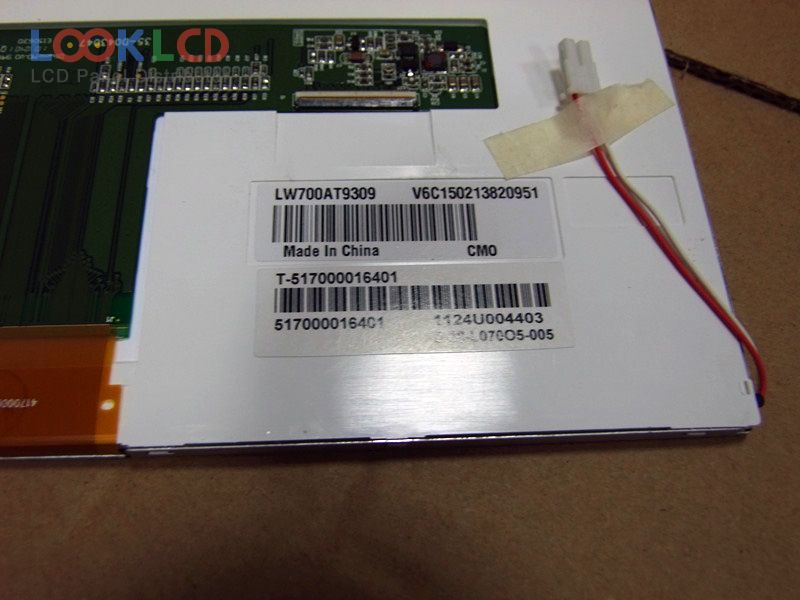

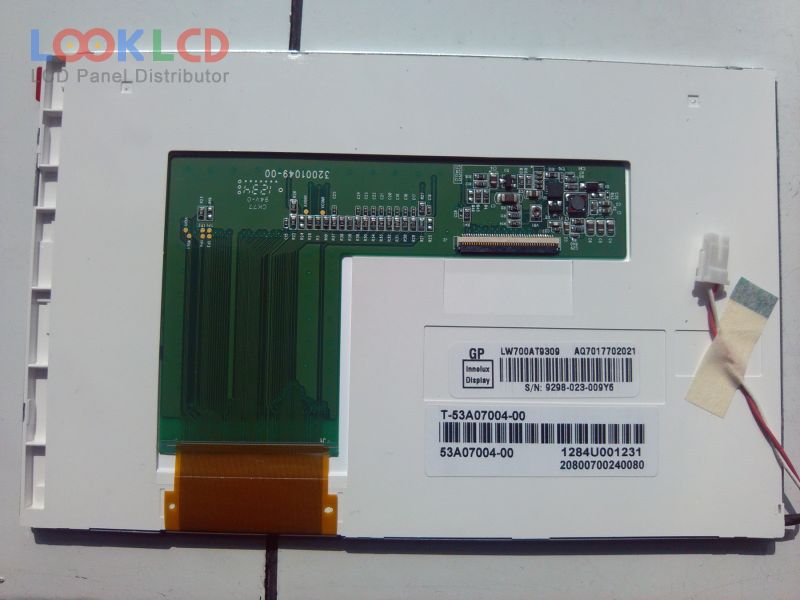

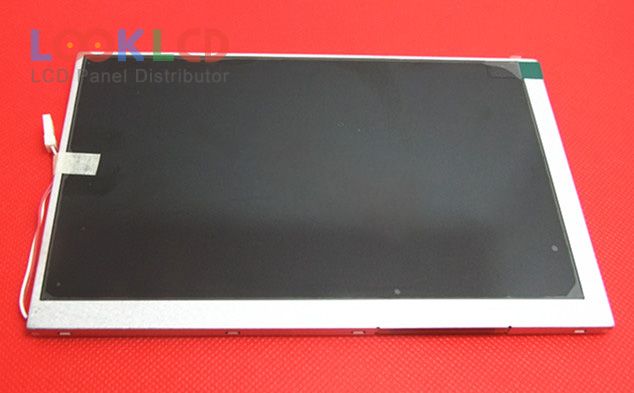

| Varenummer | LW700AT9309 |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | ChiHsin |
| panel model | LW700AT9309 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×104.44×5.9 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S8PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DPF |
