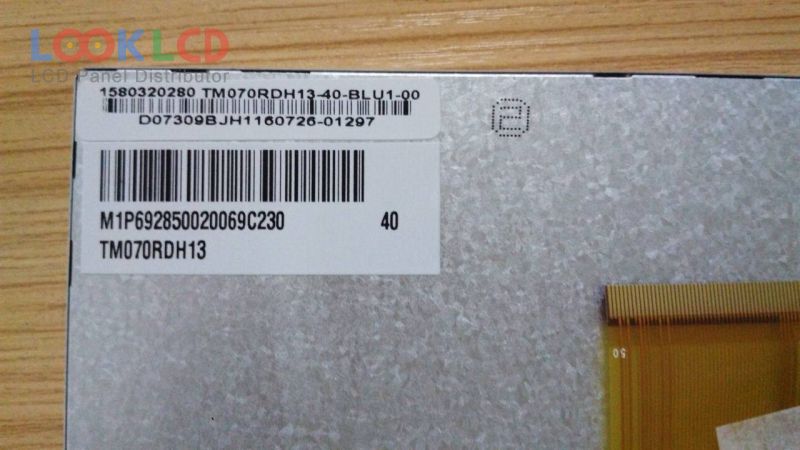

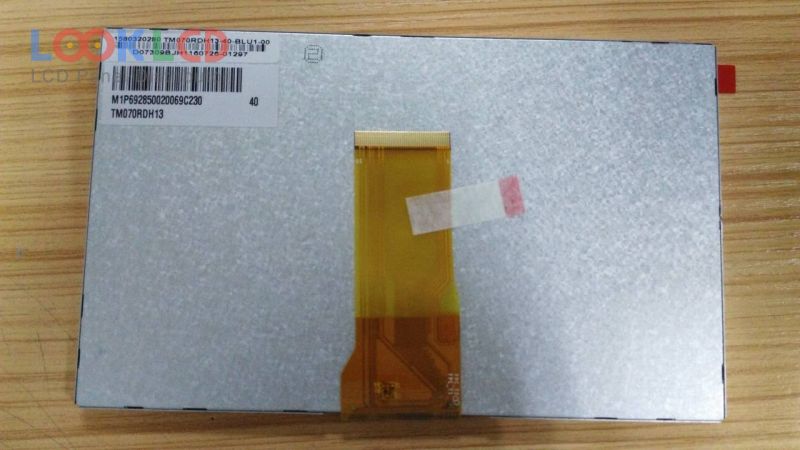

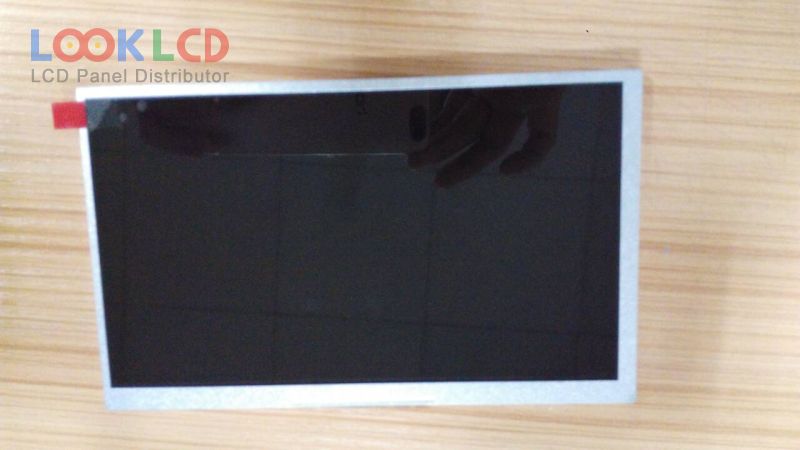

| Varenummer | TM070RDH13 |
| Mærke | Tianma |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 800:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM070RDH13 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×85.92 mm |
| omrids | 164.9×100×6 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| indgangsspænding | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | DPF |
