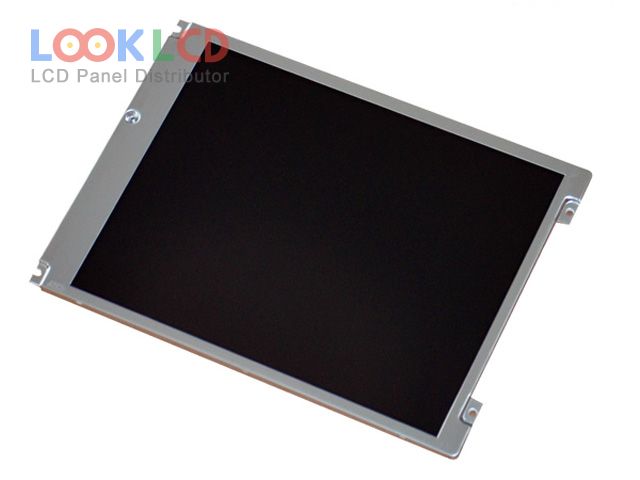

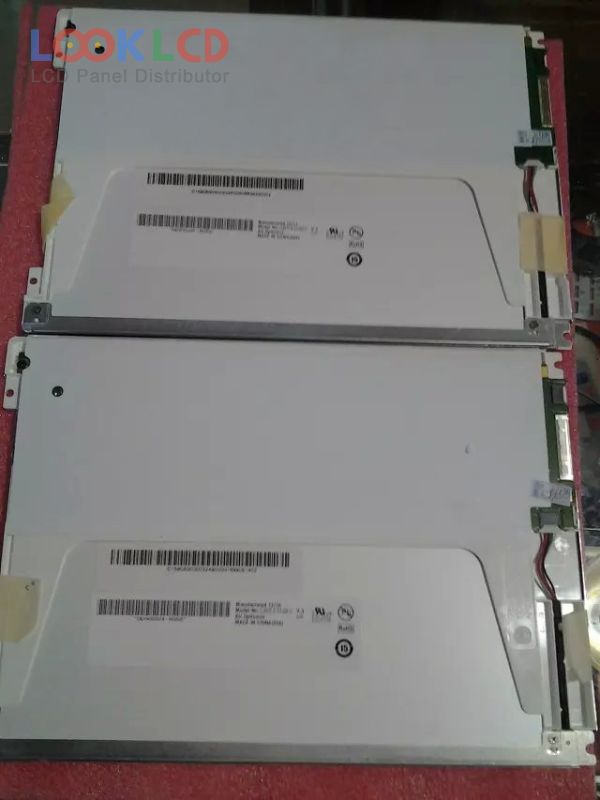

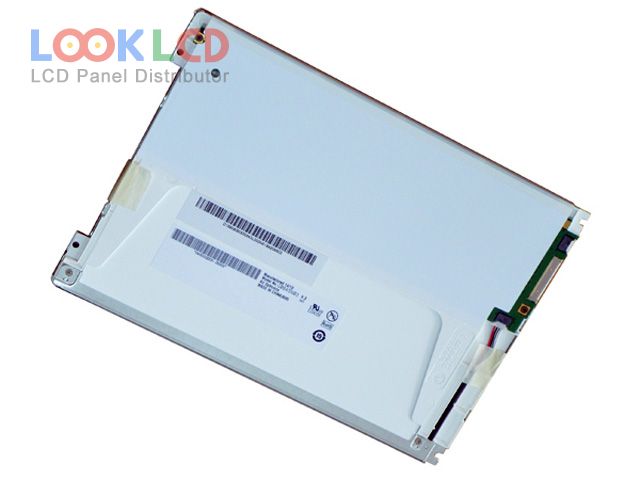

| Varenummer | G084SN03 V3 |
| Mærke | AUO |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 600:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | G084SN03 V3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 203×142.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| responstid | 20/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3 stringsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
