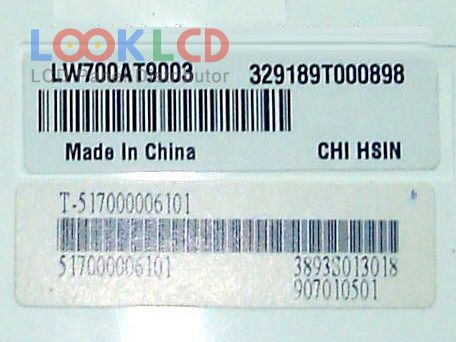

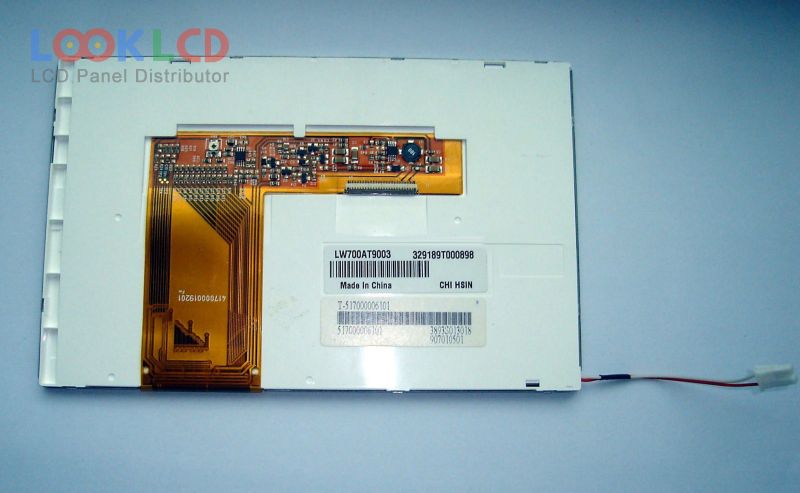

| Varenummer | LW700AT9003 |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | ChiHsin |
| panel model | LW700AT9003 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×104×5.7 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S8PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | MP4 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
| A065VL01 V1 | AUO | 6.5 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LTM07C382 | TOSHIBA | 7.0 | 1024×600 |
