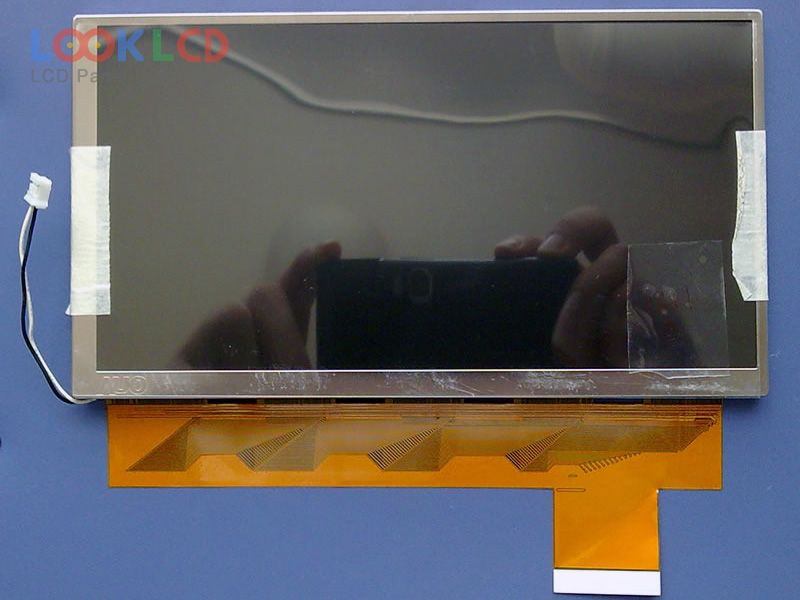

| Varenummer | C070VW03 V0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | C070VW03 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 157.2×82.8 mm |
| omrids | 167×92.9×5.75 mm |
| overflade | Antiglare (Haze 25%) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 6/10 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/9.9/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Ansøgning | CNS |
| C070VAN01.1 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VW02 V0 | AUO | 7.0 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| LA080WV3-SD01 | LG Display | 8.0 | 800×480 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
| TFD65W46 | TOSHIBA | 6.5 | 480×234 |
