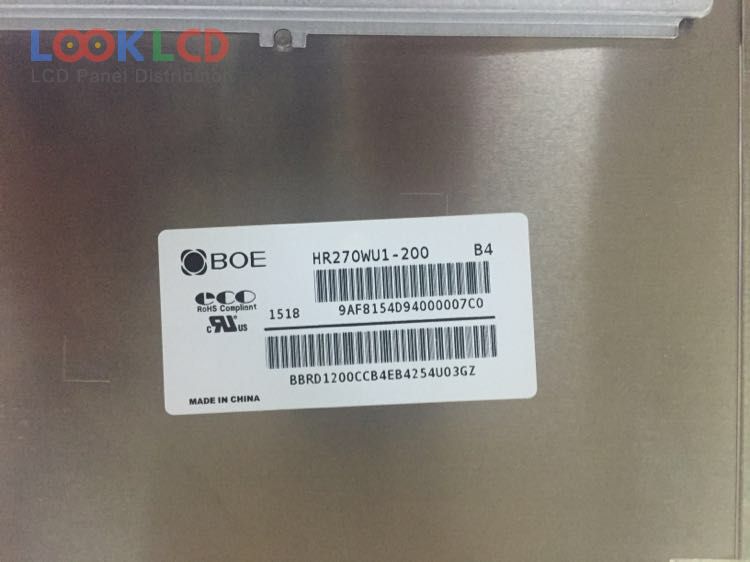

| Varenummer | HR270WU1-200 |
| Mærke | BOE |
| Størrelse | 27.0 |
| Ansøgning | DMPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 700 |
| CR | 1000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | HR270WU1-200 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 27.0 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AFFS, Normally Black, Transmissive |
| aktivt område | 597.888×336.312 mm |
| omrids | 630×368.2×15.7 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 700 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 1.07B (10-bit), sRGB |
| responstid | 14 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (2 ch, 10-bit), 51 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
