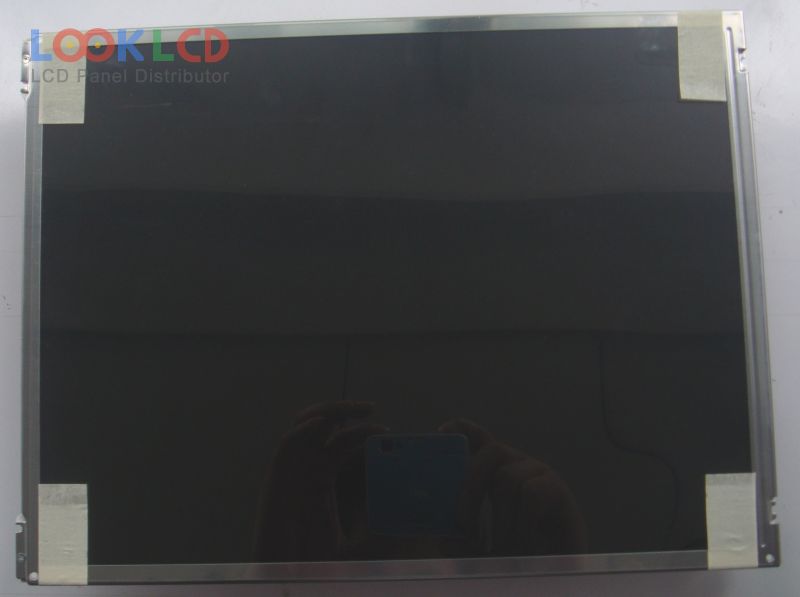

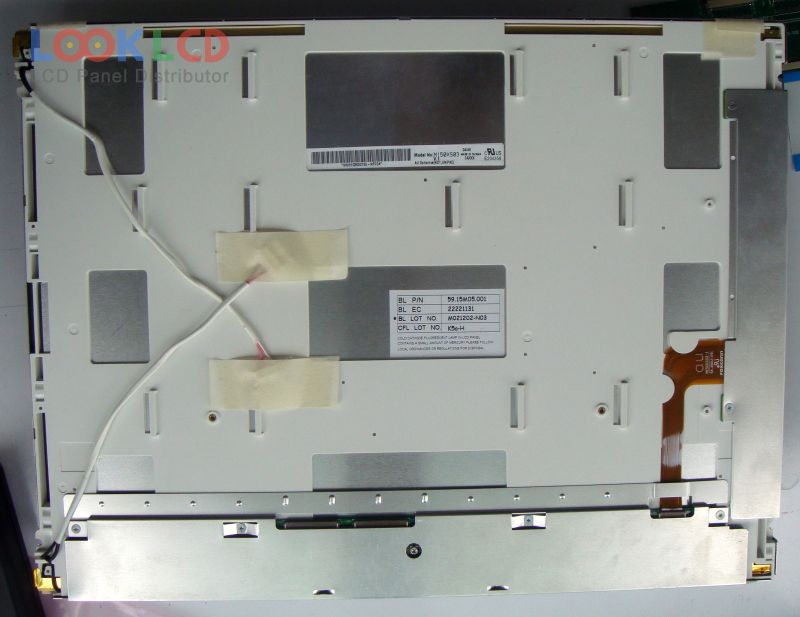

| Varenummer | M150XS03 V1 |
| Mærke | AUO |
| Størrelse | 15.0 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 240 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | AU Optronics |

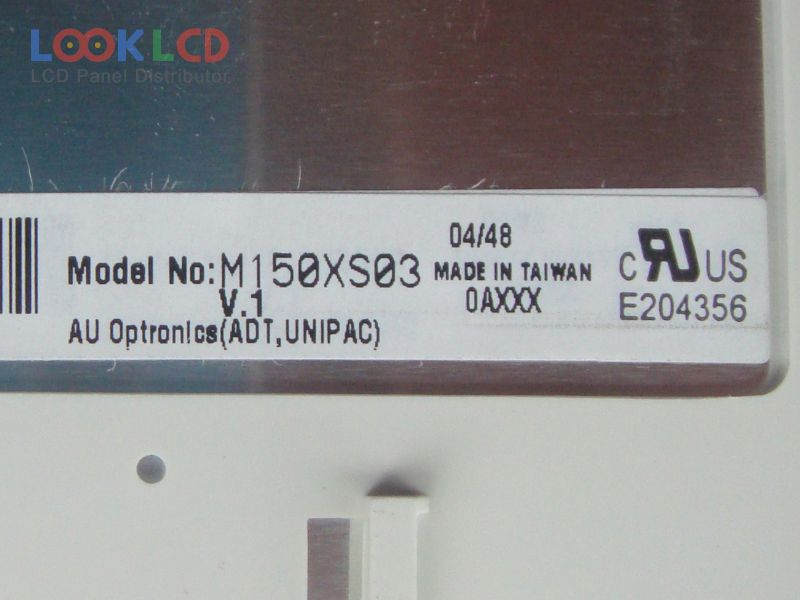

| panel model | M150XS03 V1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 331.3×249×12.1 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 240 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 8/22 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | TTL (2 ch, 6-bit), 80 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | DMPC |
