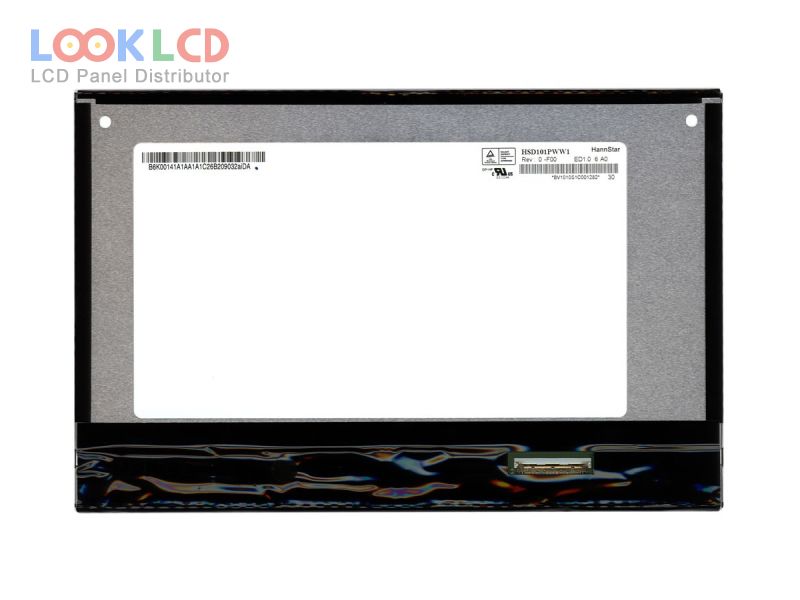

| Varenummer | HSD101PWW1-F00 |
| Mærke | HannStar |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD101PWW1-F00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | HS-IPS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit) |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
