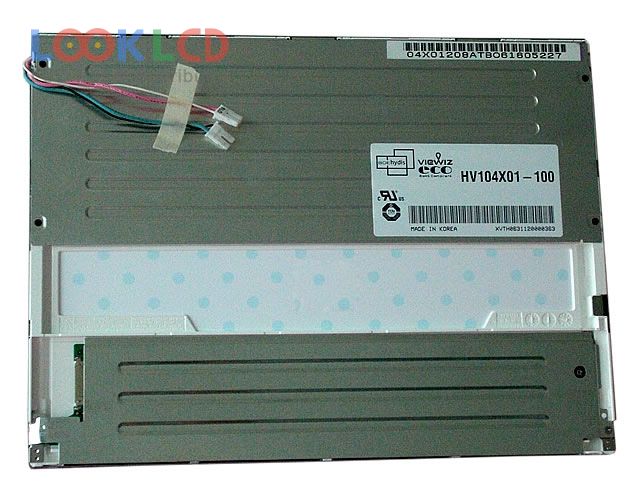

| Varenummer | HV104X01-100 |
| Mærke | HYDIS |
| Størrelse | 10.4 |
| Ansøgning | GM |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | BOE HYDIS |
| panel model | HV104X01-100 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | FFS, Normally Black, Transmissive |
| aktivt område | 210.4×157.8 mm |
| omrids | 237.8×178.3 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 14 pins |
| indgangsspænding | 3.3V (Typ.) |
