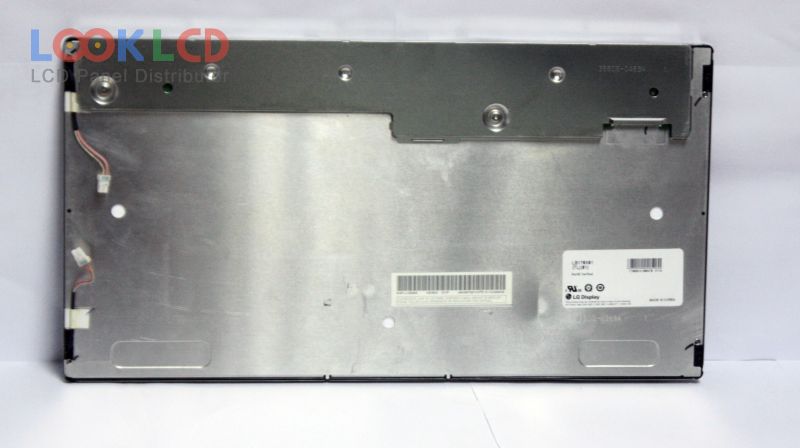

| Varenummer | LB170X01-TL01 |
| Mærke | LG Display |
| Størrelse | 17.0 |
| Ansøgning | GM |
| Løsning | 1024×502 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LB170X01-TL01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1024(RGB)×502 |
| visningstilstand | TN, Normally White, Transmissive |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | , CIE193172% |
| responstid | |
| synsvinkel | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | CCFL |
| Ansøgning | GM |
| HSD170MGW1-B01 | HannStar | 17.0 | 1440×900 |
| LB170X01-TL01 | LG Display | 17.0 | 1024×502 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| LTN170BT05-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| MT170EN01 V.C | Innolux | 17.0 | 1280×1024 |
| TX43D21VC0CAA | JDI | 17.0 | 1280×1024 |
| A080XN01 V1 | AUO | 8.0 | 1024×768 |
| A116XW02 V0 | AUO | 11.6 | 1366×768 |
| G220SVN01.0 | AUO | 22.0 | 1680×1050 |
| LM230WF3-SLD1 | LG Display | 23.0 | 1920×1080 |
| LQ104V1LG92 | SHARP | 10.4 | 640×480 |
| LQ121S1LG74A | SHARP | 12.1 | 800×600 |
| LQ150X1LW94 | SHARP | 15.0 | 1024×768 |
| LQ156T3LW02 | SHARP | 15.6 | 1366×768 |
| LQ190E1LC06 | SHARP | 19.0 | 1280×1024 |
| LQ190E1LX75 | SHARP | 19.0 | 1280×1024 |
