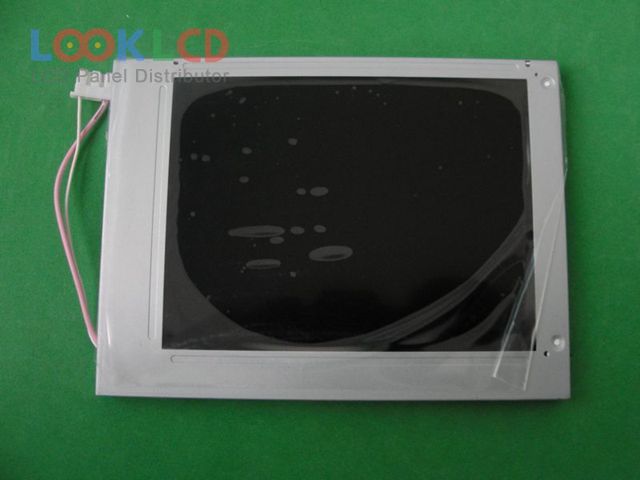

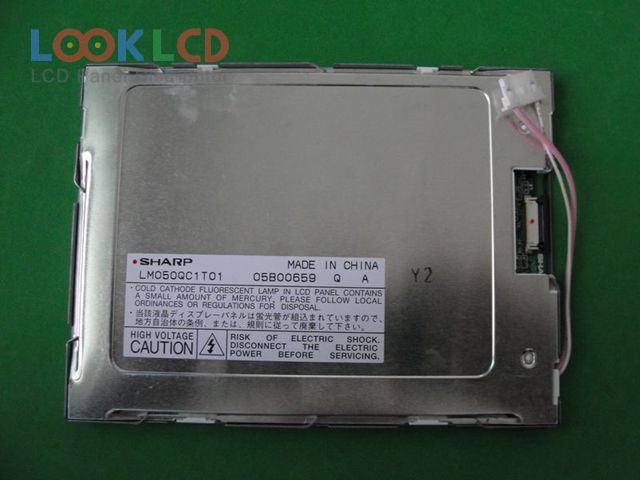

| Varenummer | LM050QC1T01 |
| Mærke | SHARP |
| Størrelse | 5.0 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 30:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | SHARP |
| panel model | LM050QC1T01 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 100.8×75.6 mm |
| omrids | 134×100 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 30:1 (Typ.) |
| vise farver | Color |
| responstid | 230/120 (Typ.)(Tr/Td) |
| synsvinkel | 35/35/15/25 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
