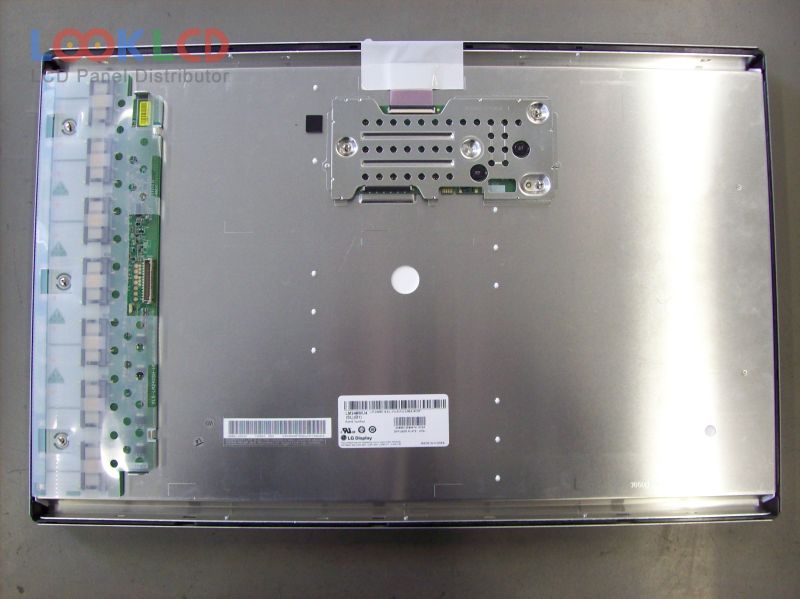

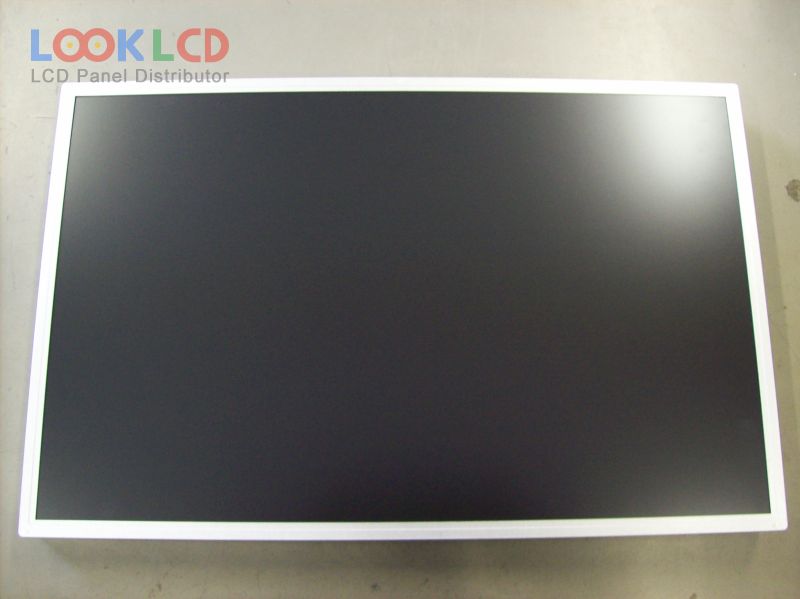

| Varenummer | LM240WU4-SLB1 |
| Mærke | LG Display |
| Størrelse | 24.0 |
| Ansøgning | DMPC |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 1000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LM240WU4-SLB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 24.0 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | S-IPS, Normally Black, Transmissive |
| aktivt område | 518.4×324 mm |
| omrids | 546.4×352×40.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 1.07B (8-bit + Hi-FRC), CIE1931102% |
| responstid | 6/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 10-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | DMPC |
