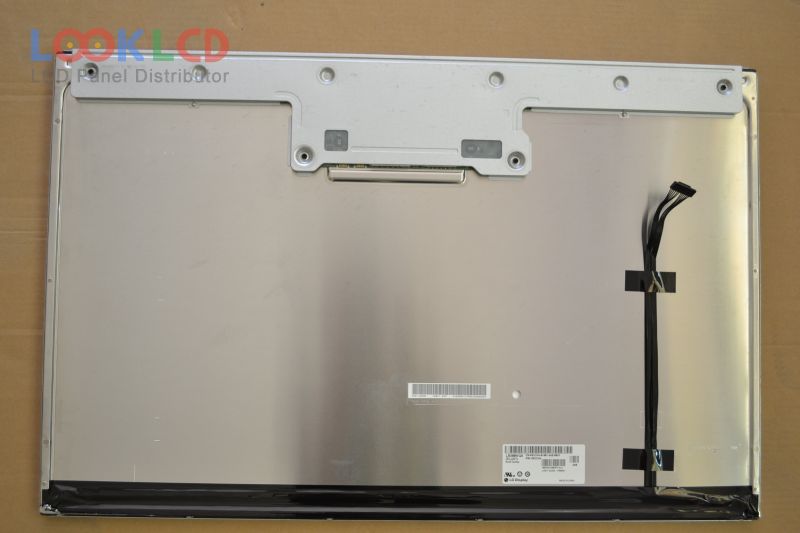

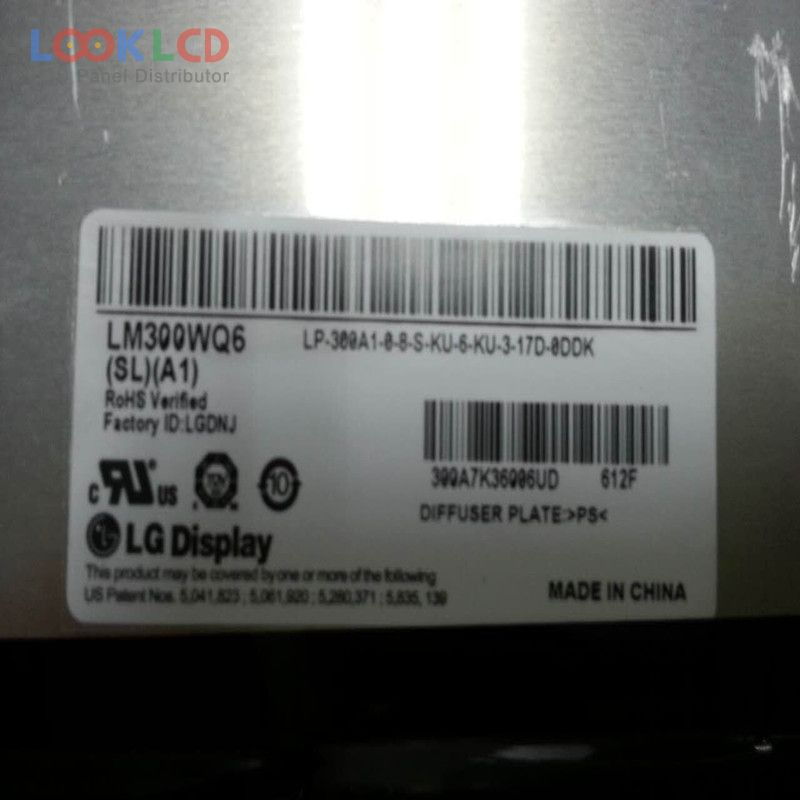

| Varenummer | LM300WQ6-SLA1 |
| Mærke | LG Display |
| Størrelse | 30.0 |
| Ansøgning | DMPC |
| Løsning | 2560×1600 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 1000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | GB-r LED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LM300WQ6-SLA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 30.0 inch |
| løsning | 2560(RGB)×1600 , WQXGA |
| visningstilstand | AH-IPS, Normally Black, Transmissive |
| aktivt område | 641.28×400.8 mm |
| omrids | 677.3×436.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 1.07B (10-bit), Adobe104% |
| responstid | 7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | GB-r LEDWithout Driver |
| signal interface | LVDS (4 ch, 10-bit), 92 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | DMPC |
