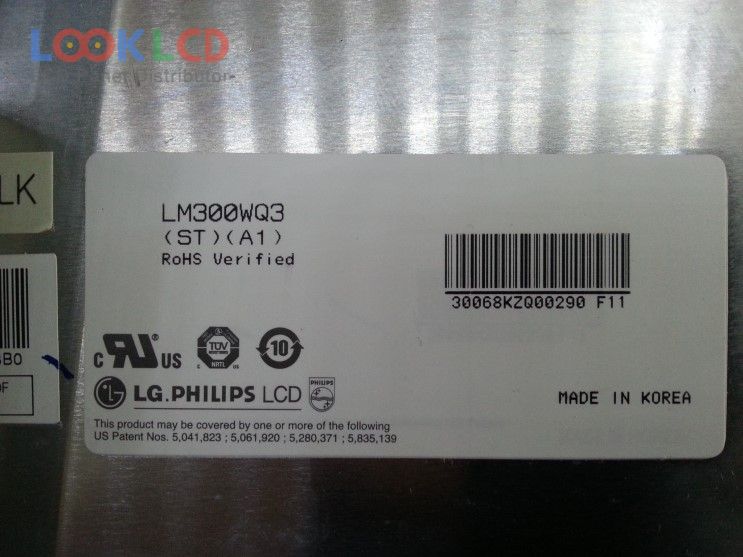

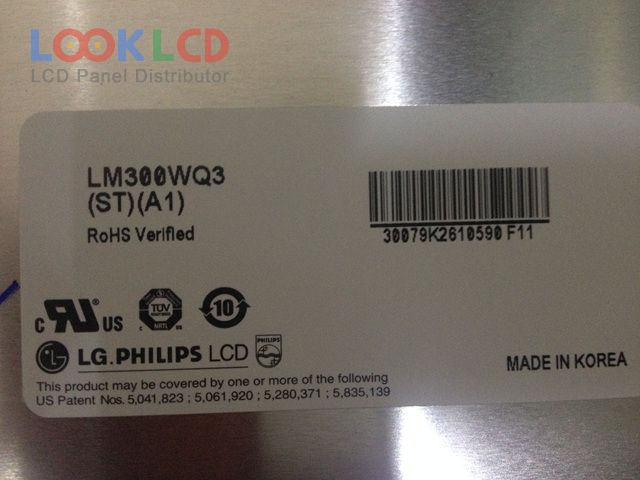

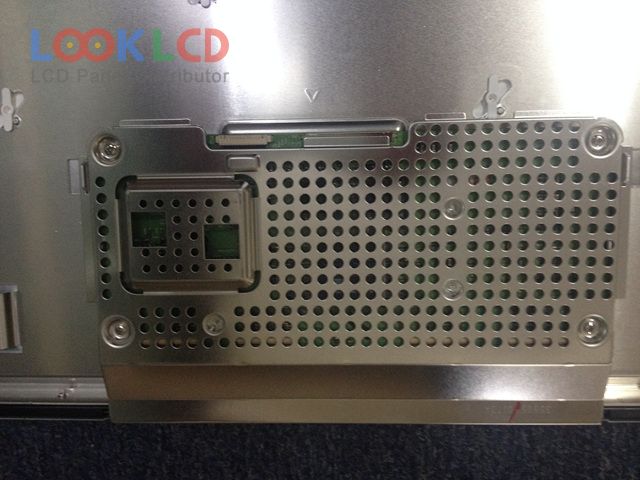

| Varenummer | LM300WQ3-STA1 |
| Mærke | LG Display |
| Størrelse | 30.0 |
| Ansøgning | DMPC |
| Løsning | 2560×1600 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | TMDS |
| panel mærke | LG.Philips LCD |
| panel model | LM300WQ3-STA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 30.0 inch |
| løsning | 2560(RGB)×1600 , WQXGA |
| visningstilstand | S-IPS, Normally Black, Transmissive |
| aktivt område | 641.28×400.8 mm |
| omrids | 677.3×436.8 mm |
| overflade | Antiglare (Haze 13%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193192% |
| responstid | 6/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 16 pcsCCFLEmbedded (Inverter) |
| signal interface | Dual Link TMDS, 45 pins |
| indgangsspænding | 18.0V (Typ.) |
| rohs: | |
| Ansøgning | DMPC |
| LM300W01-STA1 | LG Display | 30.0 | 2560×1600 |
| LM300W01-STA4 | LG Display | 30.0 | 2560×1600 |
| LM300WQ3-STA1 | LG Display | 30.0 | 2560×1600 |
| LM300WQ5-SDA1 | LG Display | 30.0 | 2560×1600 |
| LM300WQ5-SLA1 | LG Display | 30.0 | 2560×1600 |
| LM300WQ6-SLA1 | LG Display | 30.0 | 2560×1600 |
| LTM300M1-P02 | Samsung | 30.0 | 2560×1600 |
| LM190E09-TLK1 | LG Display | 19.0 | 1280×1024 |
| LM190WX1-TLL1 | LG Display | 19.0 | 1440×900 |
| LM220WE3-TLA1 | LG Display | 22.0 | 1680×1050 |
| LM230WF5-TLC1 | LG Display | 23.0 | 1920×1080 |
| LM250WF3-TLA1 | LG Display | 25.0 | 1920×1080 |
| LM270WF2-TLA5 | LG Display | 27.0 | 1920×1080 |
| LM300WQ3-STA1 | LG Display | 30.0 | 2560×1600 |
| LTM230HT03 | Samsung | 23.0 | 1920×1080 |
| M201UN03 V0 | AUO | 20.1 | 1600×1200 |
| M215HW01 V0 | AUO | 21.5 | 1920×1080 |
