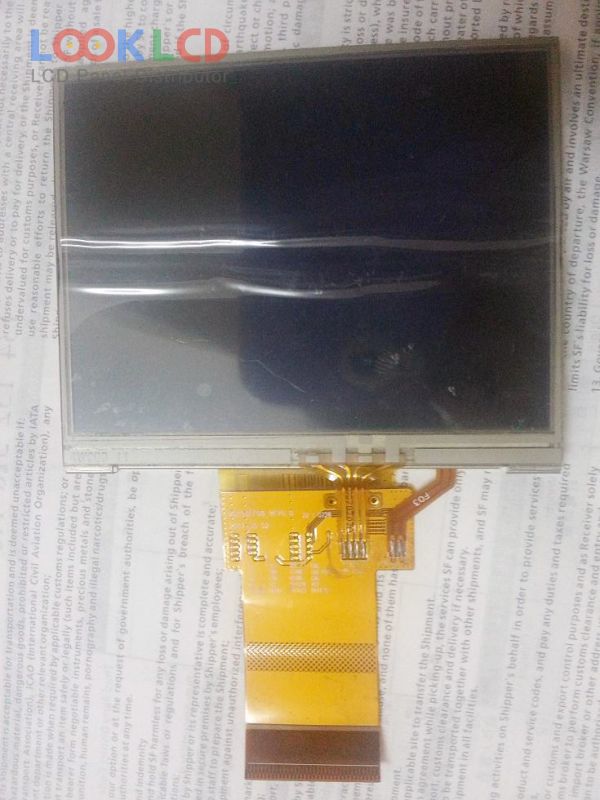

| Varenummer | LMS350GF08 |
| Mærke | Samsung |
| Størrelse | 3.5 |
| Ansøgning | PP |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 320 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | LMS350GF08 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, TMR |
| aktivt område | 70.08×52.56 mm |
| omrids | 76.9×63.9×4.45 mm |
| overflade | |
| lysstyrke | 320 cd/m² (Typ.) |
| kontrastforhold | 300 : 1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 71 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDD/VCI) |
| Ansøgning | PP |
| LMS350DF03 | Samsung | 3.5 | 320×480 |
| LMS350GF03-001 | Samsung | 3.5 | 320×240 |
| LMS350GF07-005 | Samsung | 3.5 | 320×240 |
| LMS350GF08 | Samsung | 3.5 | 320×240 |
| LMS350GF12-005 | Samsung | 3.5 | 320×240 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| A035QN05 V0 | AUO | 3.5 | 320×240 |
| A035QN05 V1 | AUO | 3.5 | 320×240 |
| LMS350GF03-001 | Samsung | 3.5 | 320×240 |
| LMS350GF08 | Samsung | 3.5 | 320×240 |
